Sutro Baths
| Exterior | Interior | Blueprints | Construction | Ice Rink | Programmes | Newspaper | Film | Destruction | Misc |
|
10/20/2007: John Hall and I visited the San Francisco Public Library to review the Sutro Baths blueprint collection. While far from ideal, we did take digital photos of a few sheets that were deemed useful in understanding the original pre-ice rink construction. We only looked at three of five rolls. Those images are posted below... |

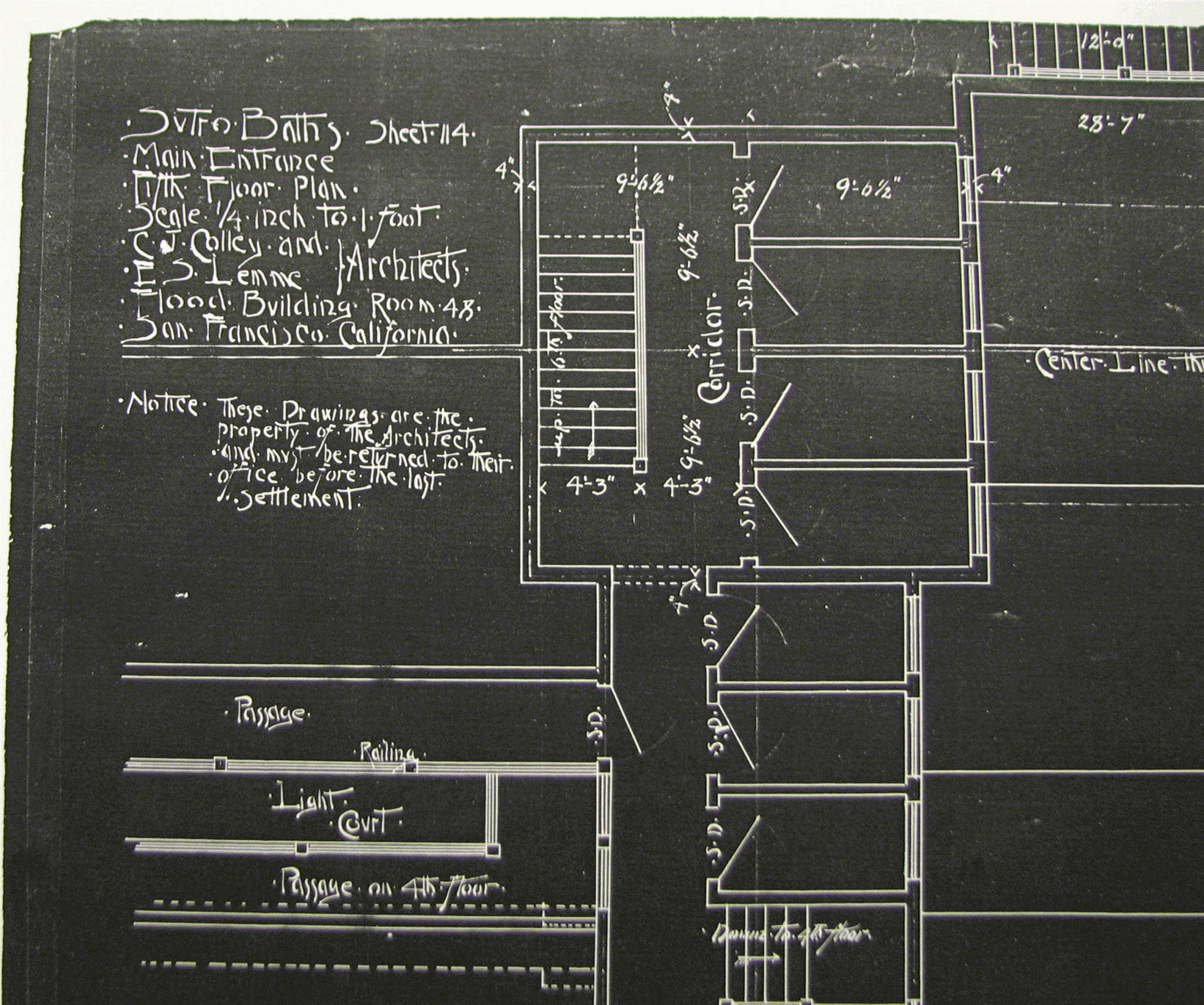

| 192?, modifications to the main entrance building |
 |
| Possibly the Ice Rink Women's Locker Room |
 |

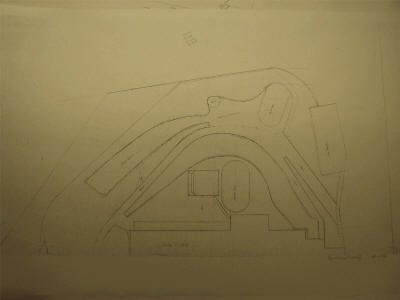

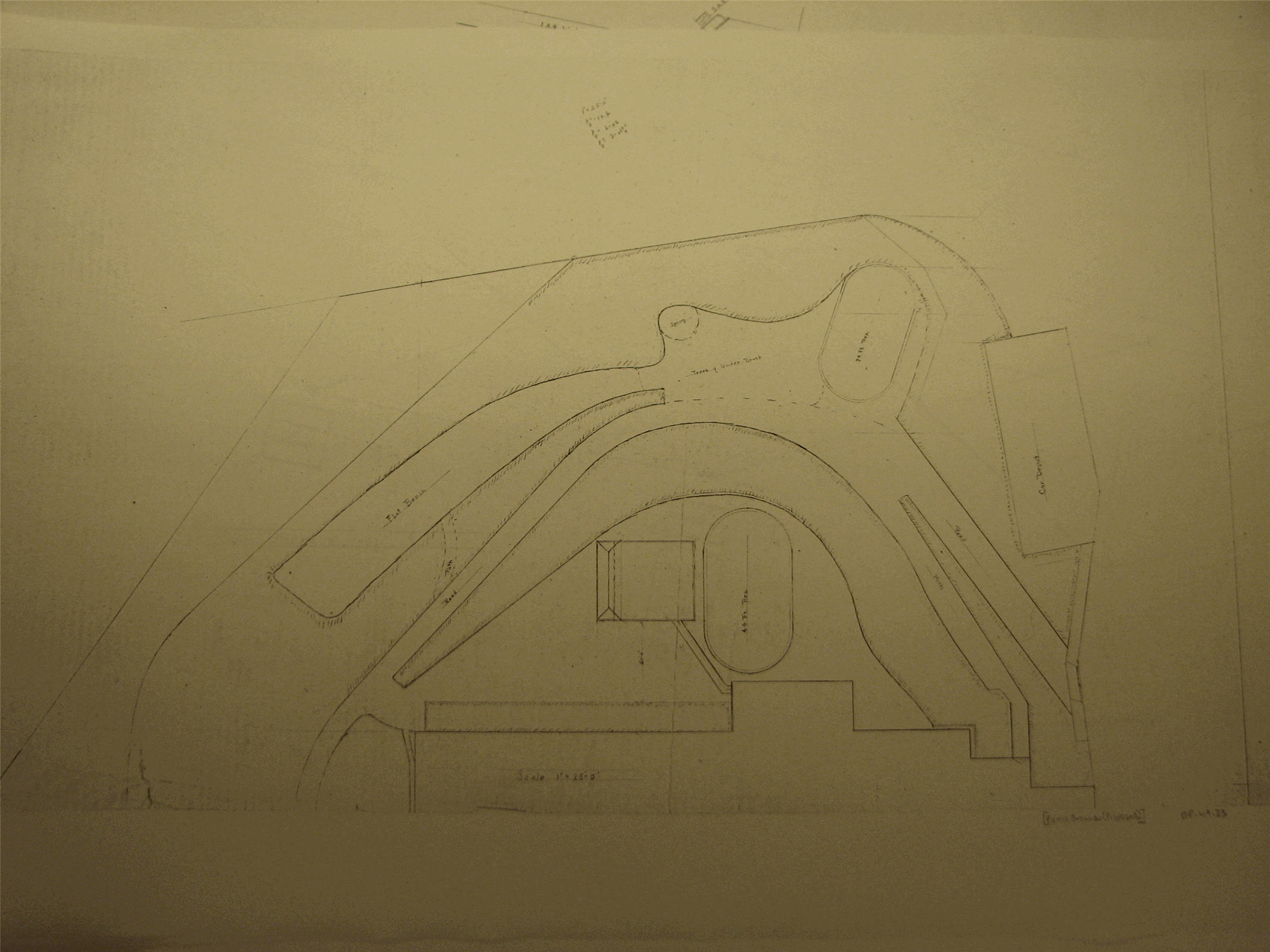

| Plan for adding a building next to outside tank? |
 |

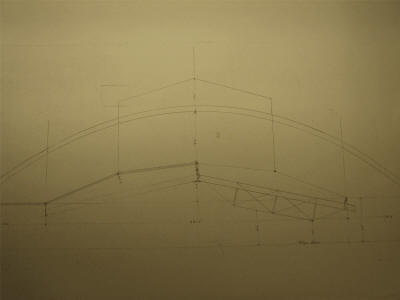

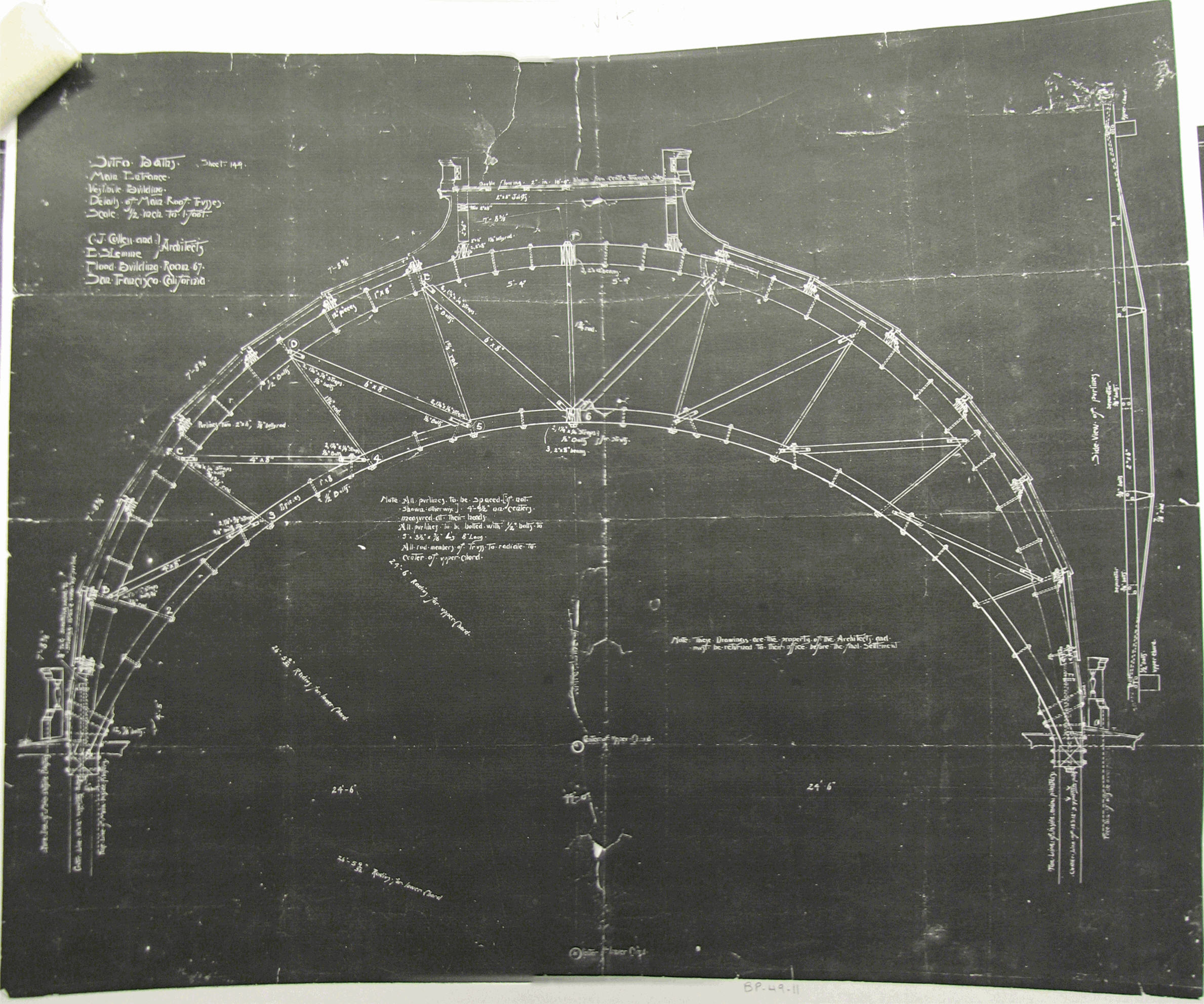

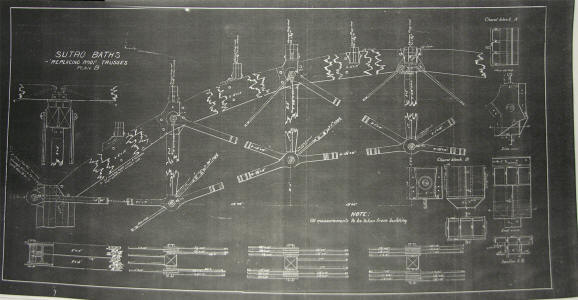

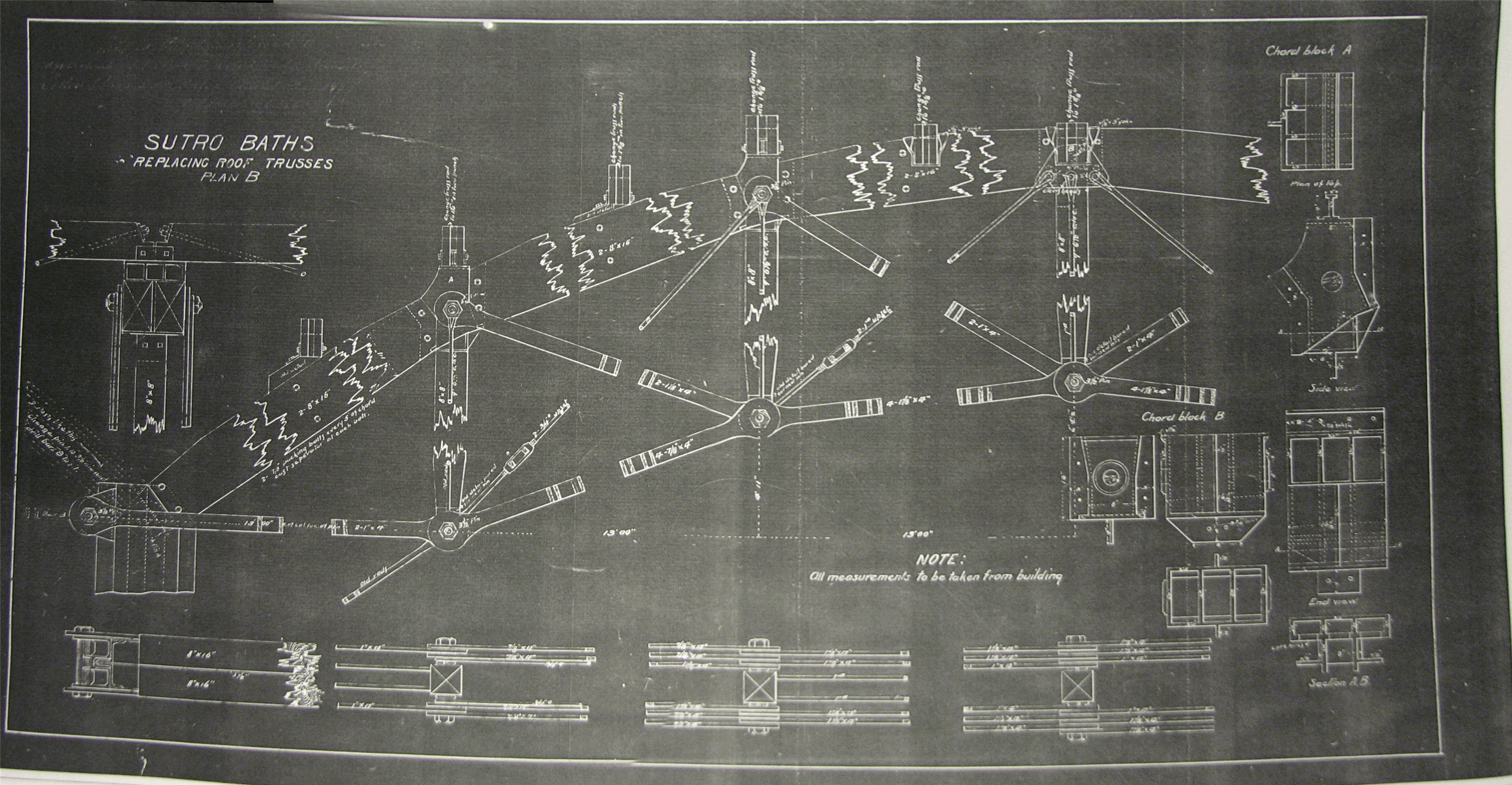

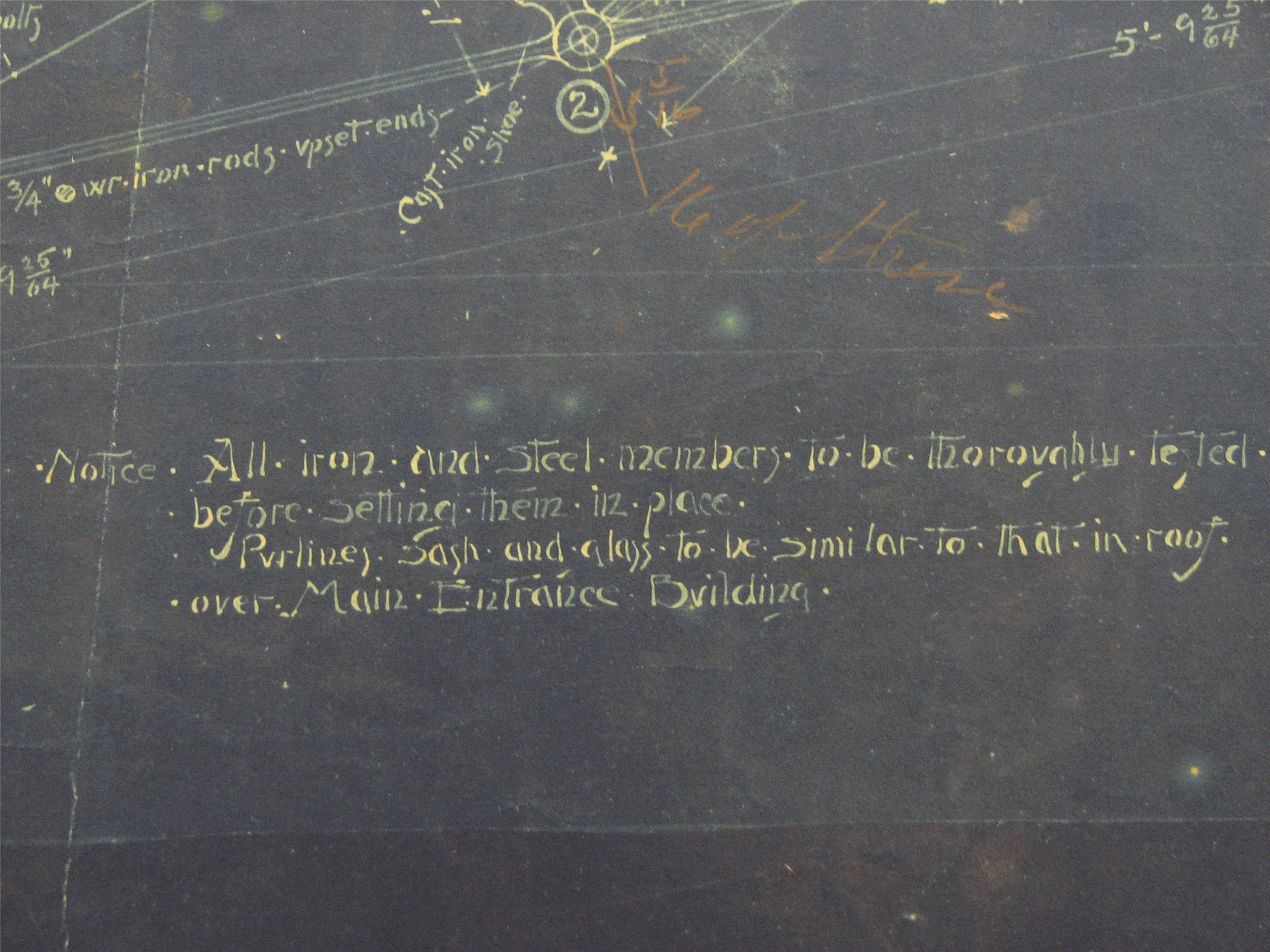

| Modification of roof truss |
 |
| East elevation |
 |

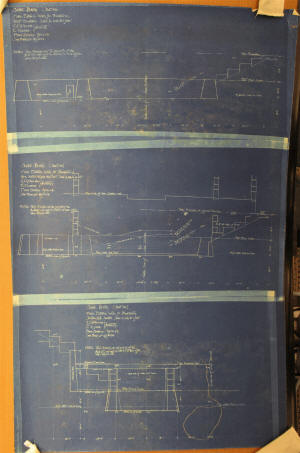

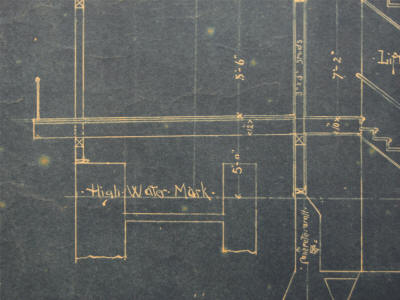

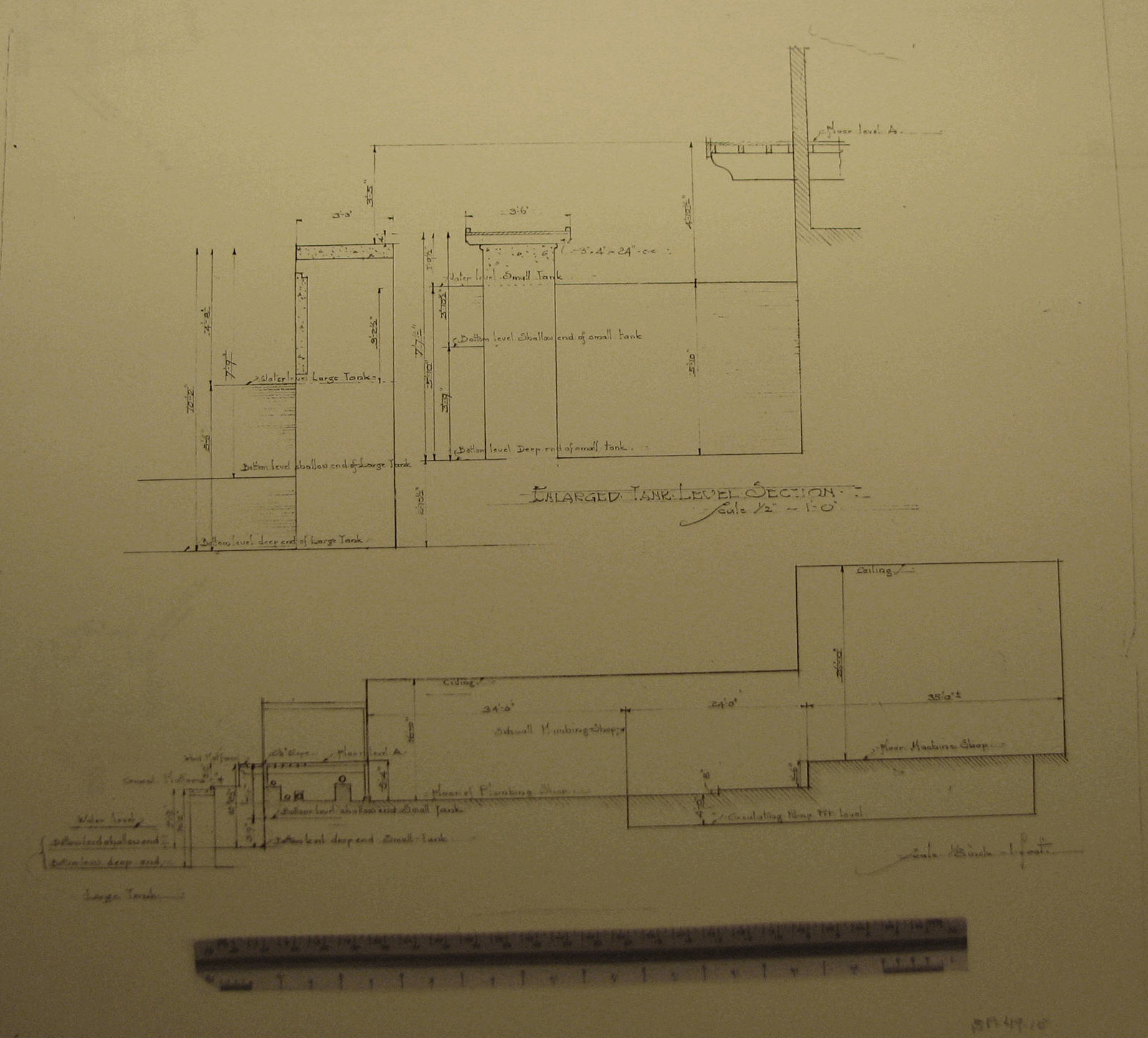

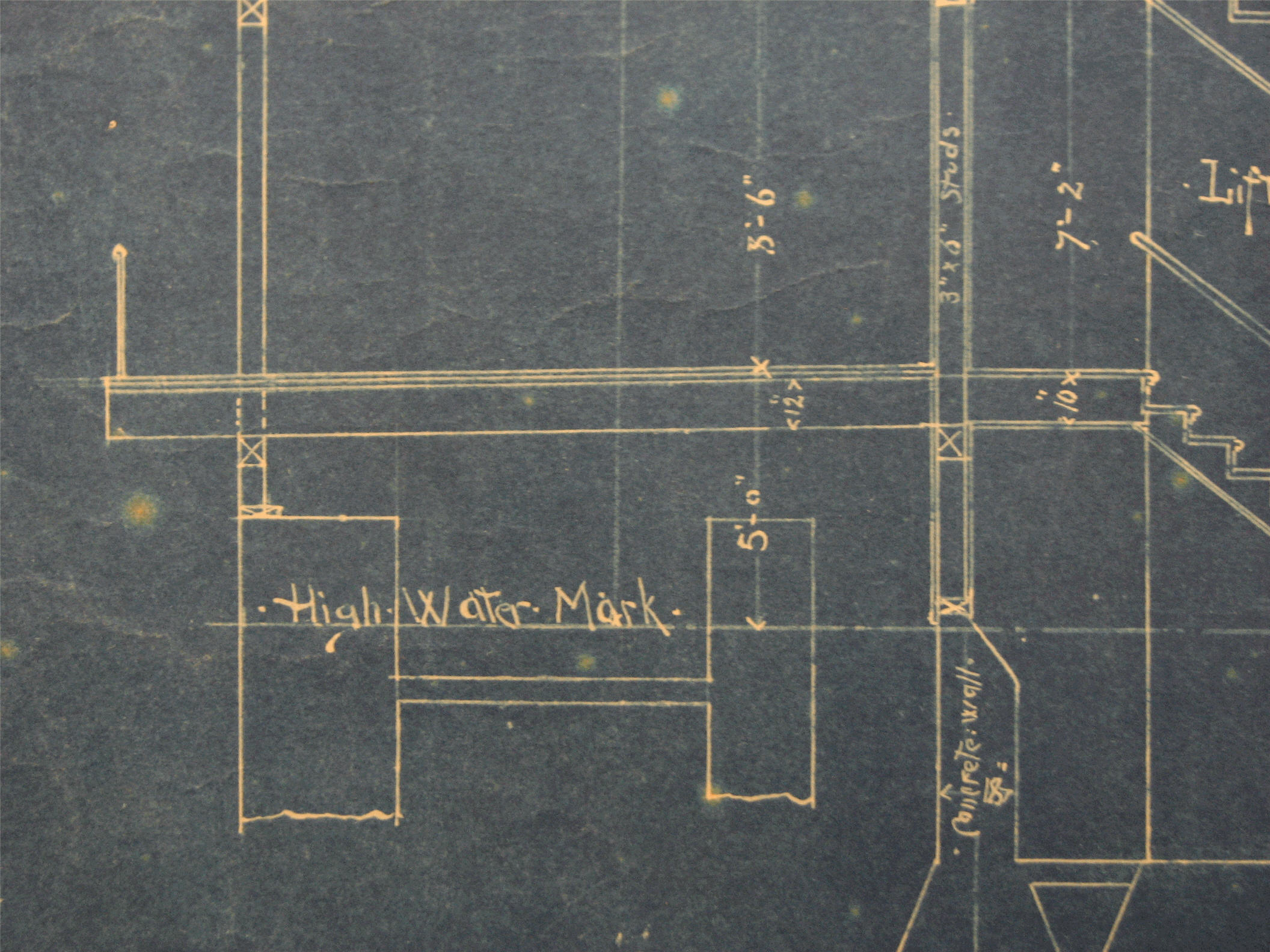

| Cross section of tanks |
 |

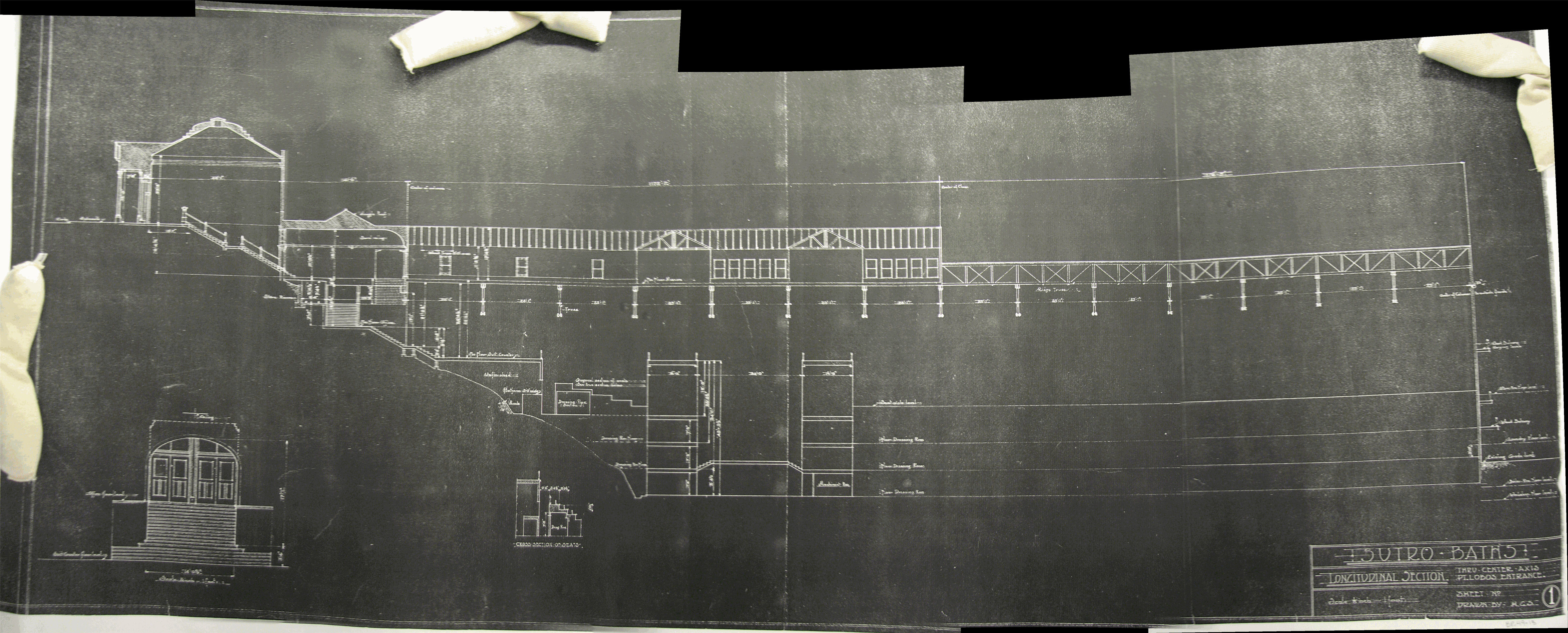

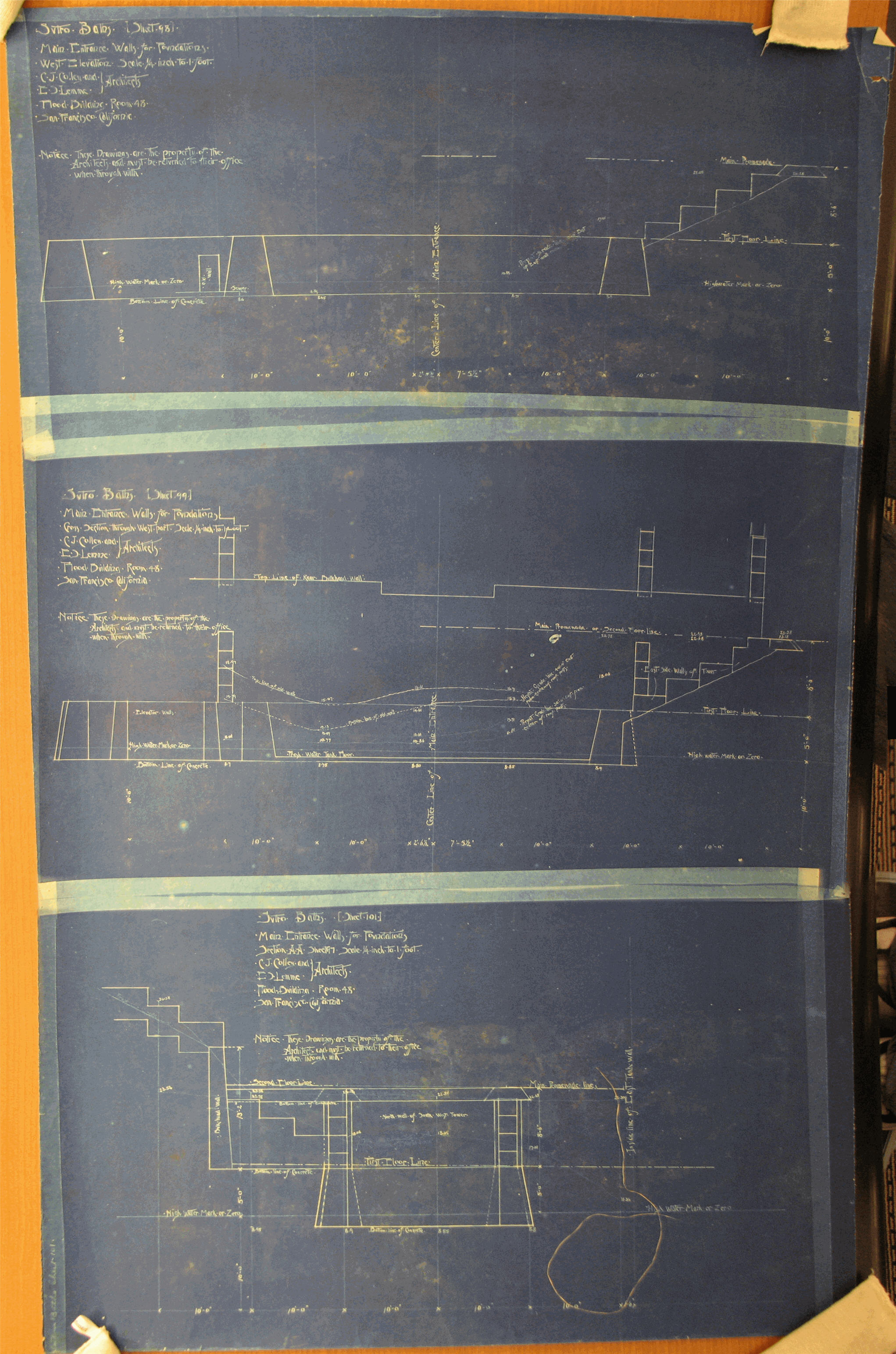

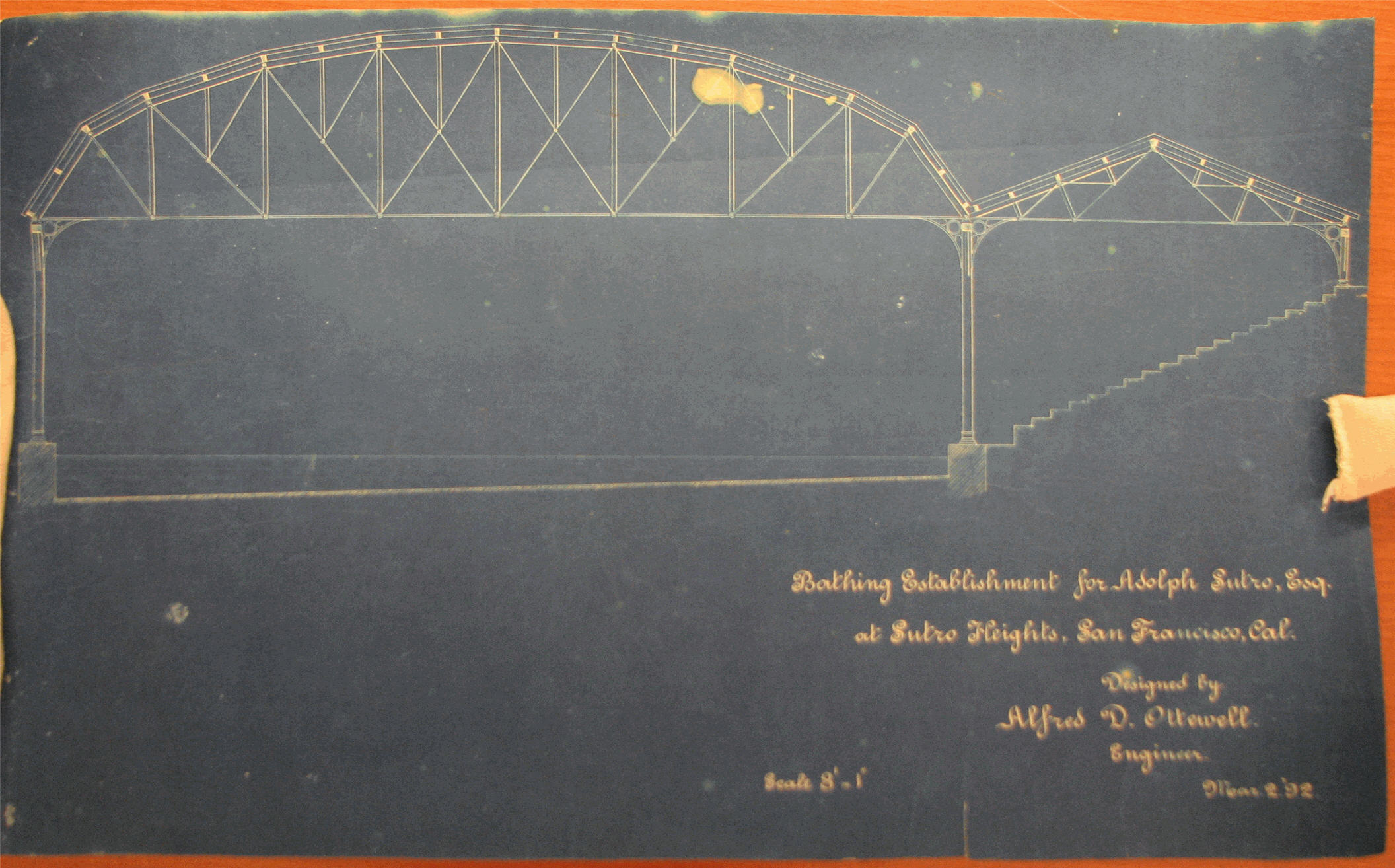

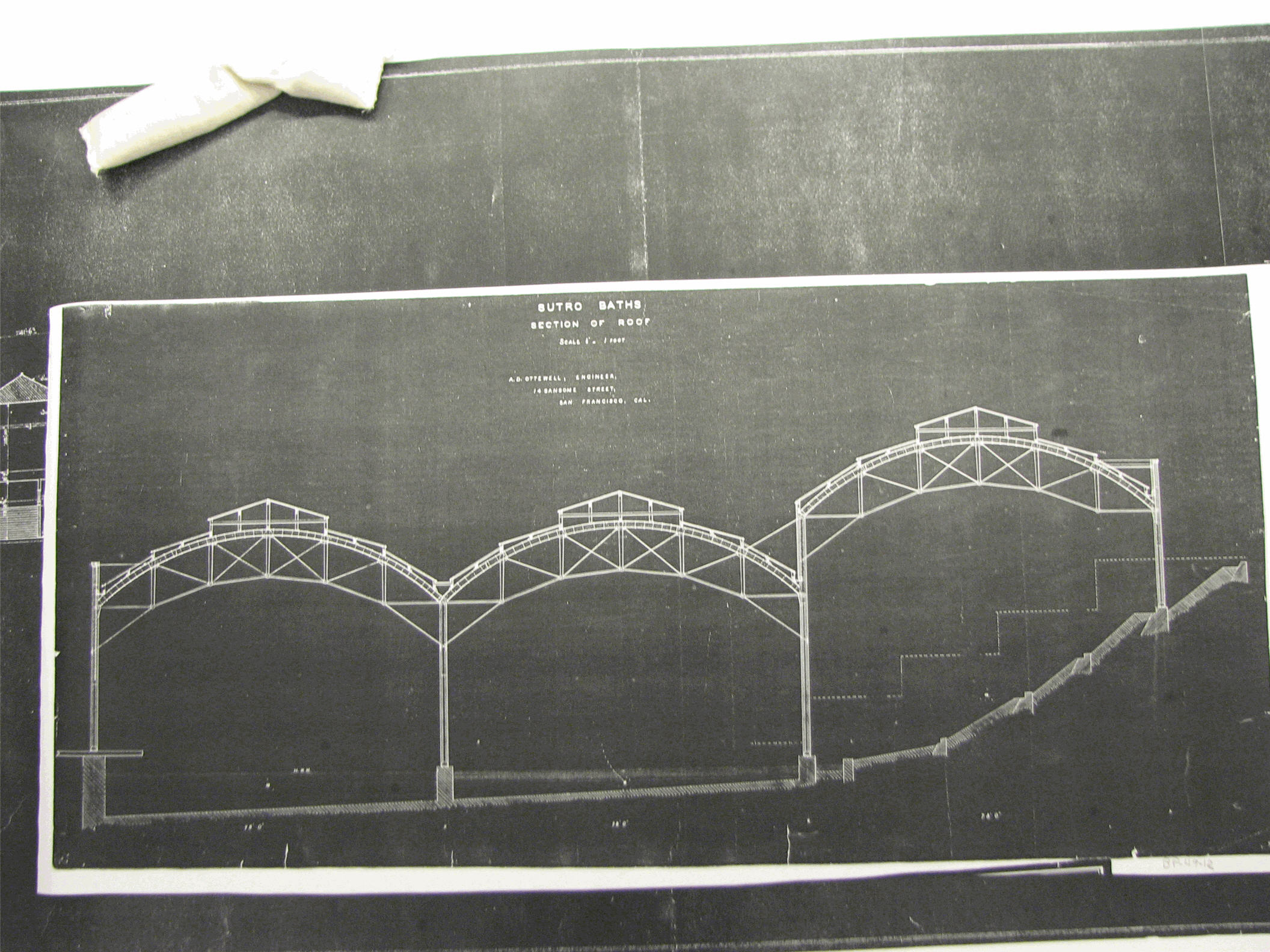

| Cross section of Baths |
|

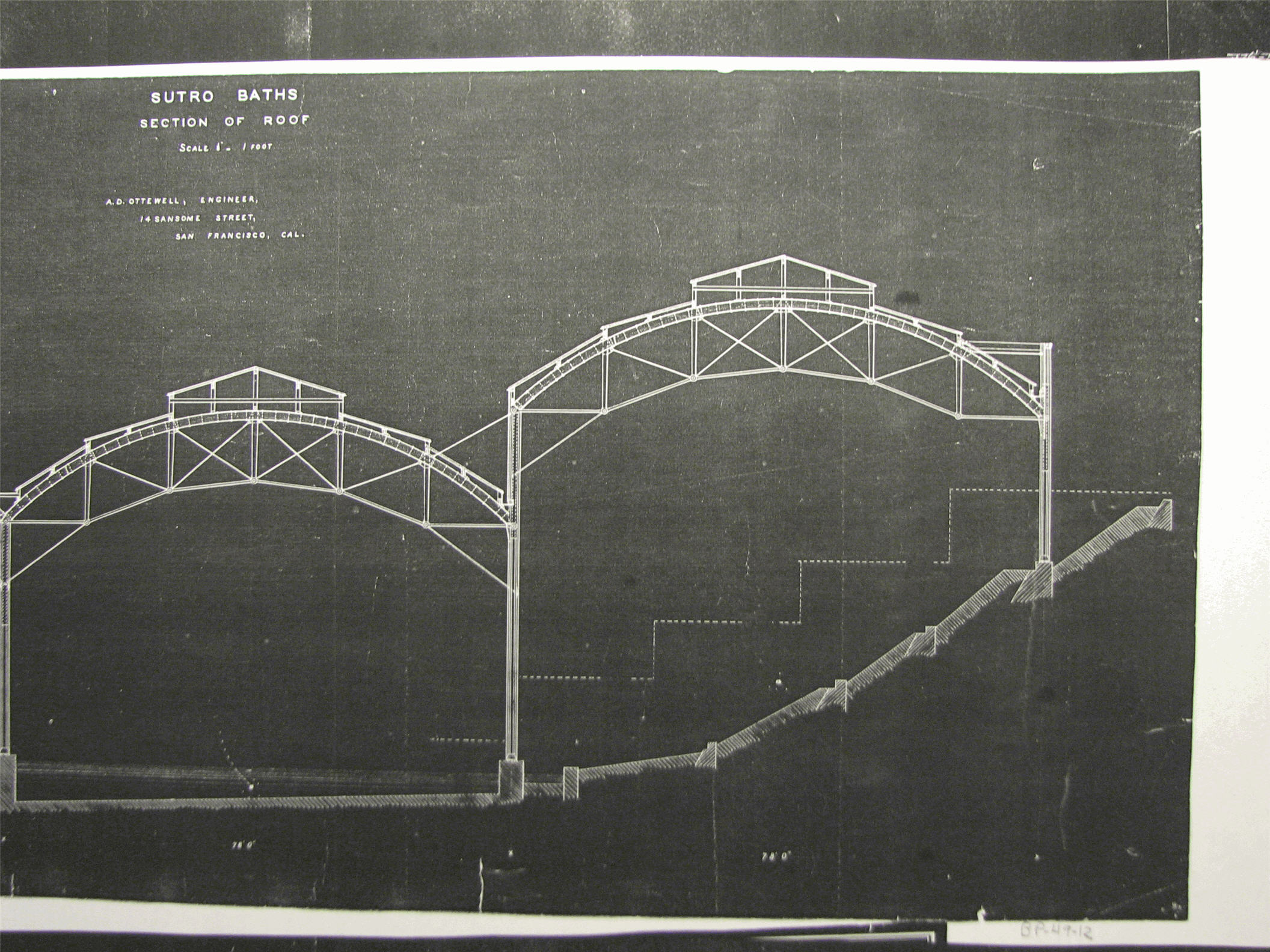

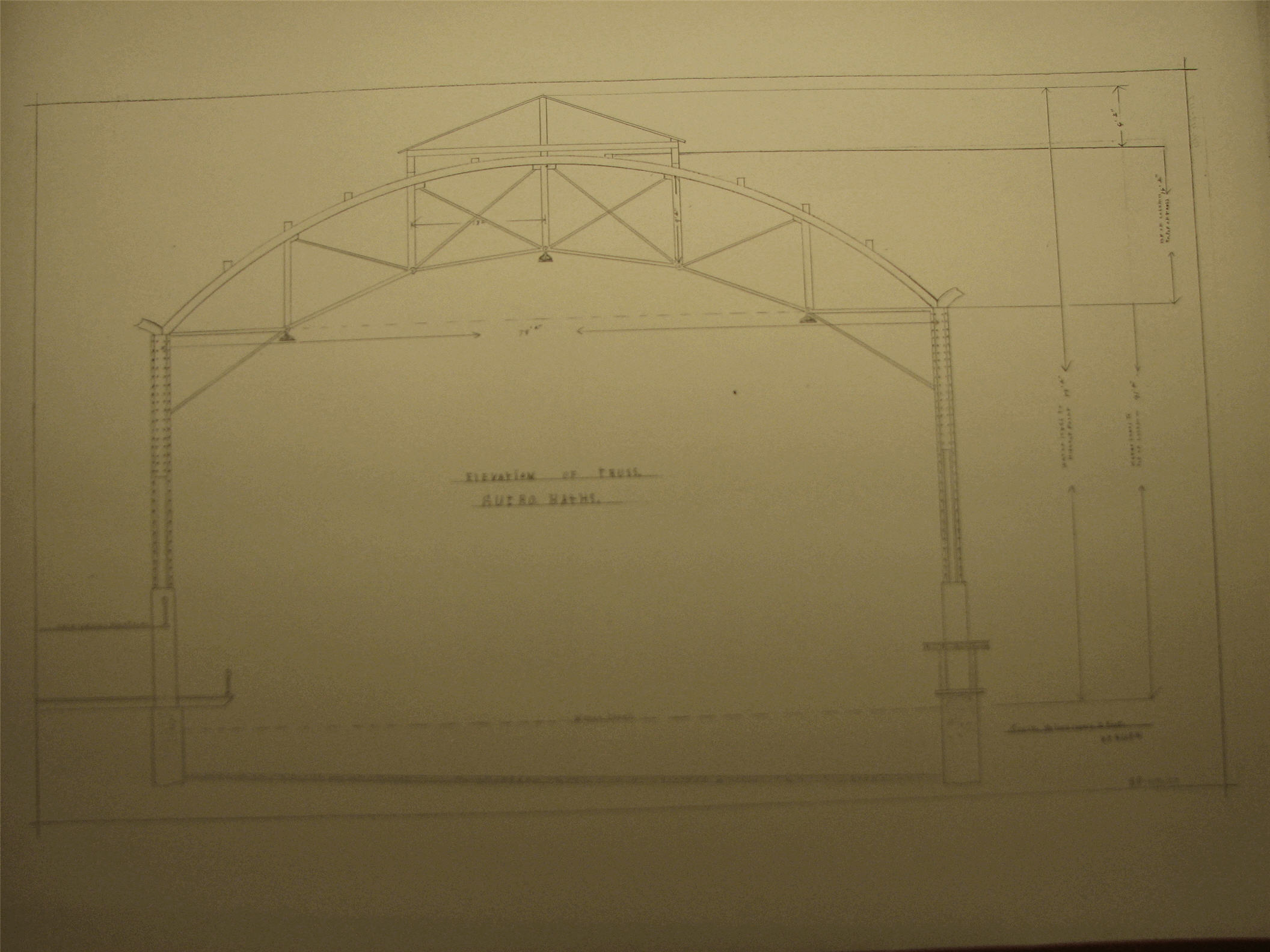

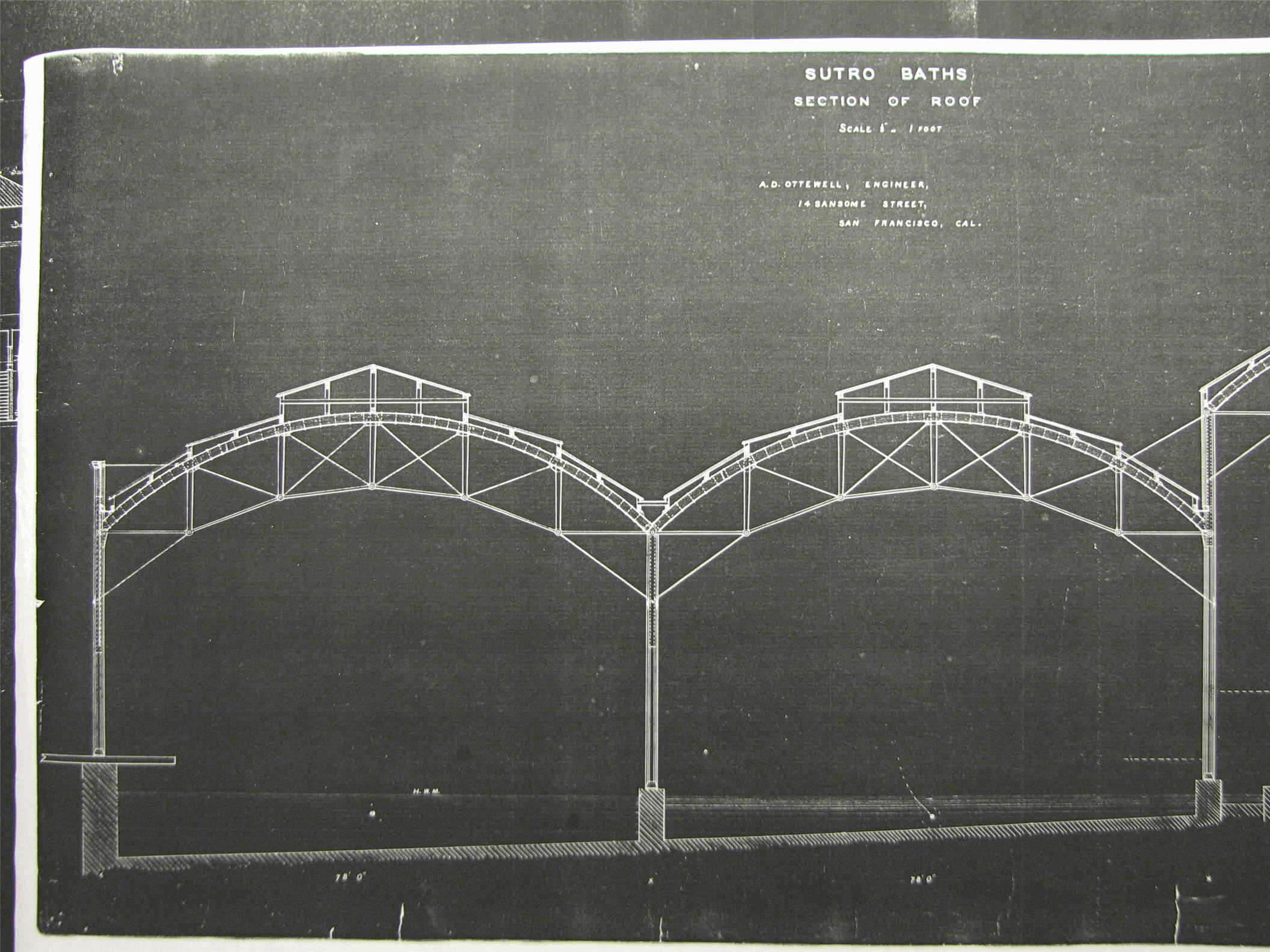

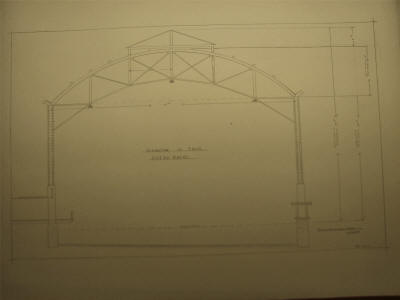

| Roof Truss |
|
| Roof Truss for vestibule at the top of the Main stairs leading down to the tanks |
 |

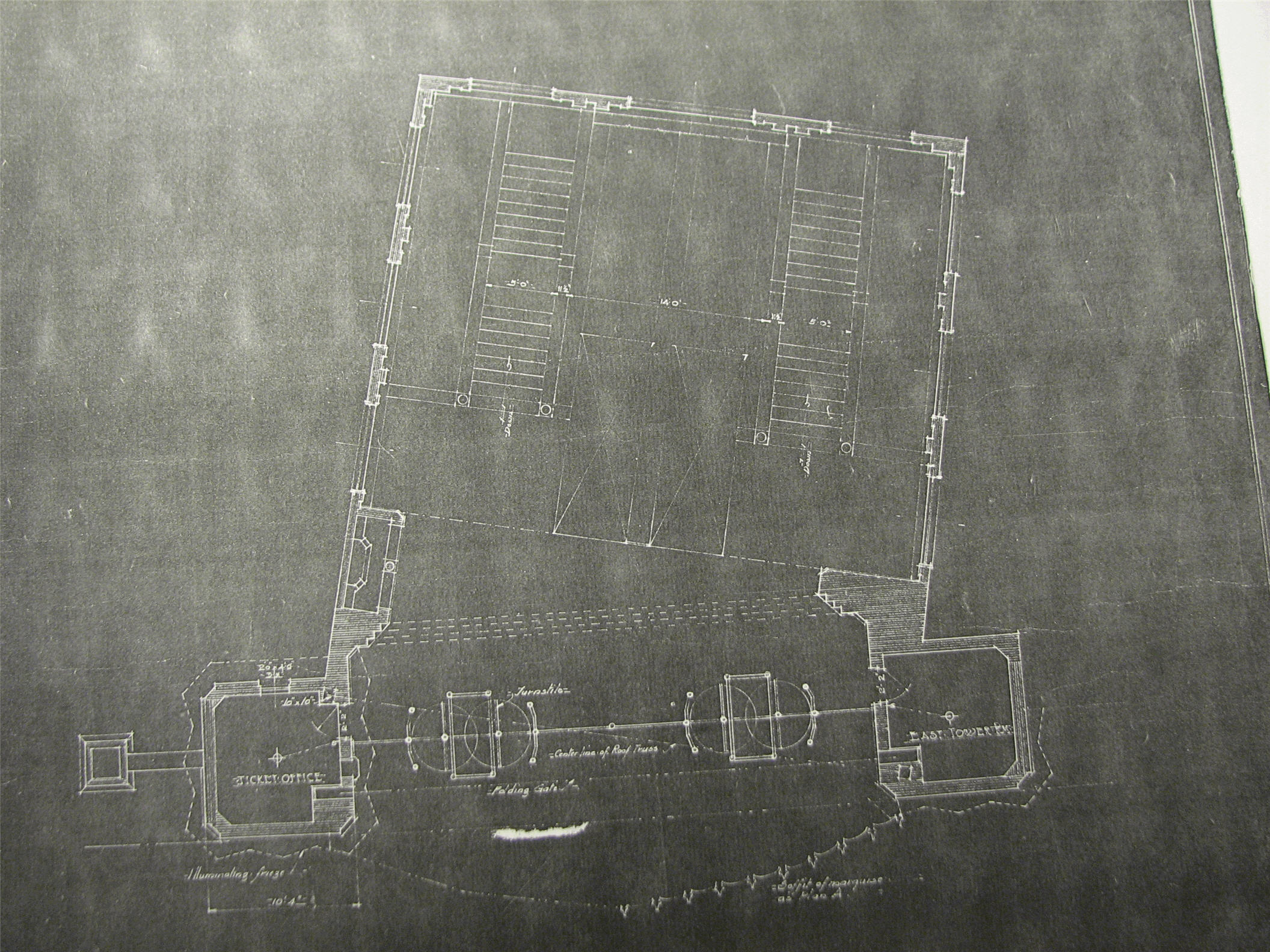

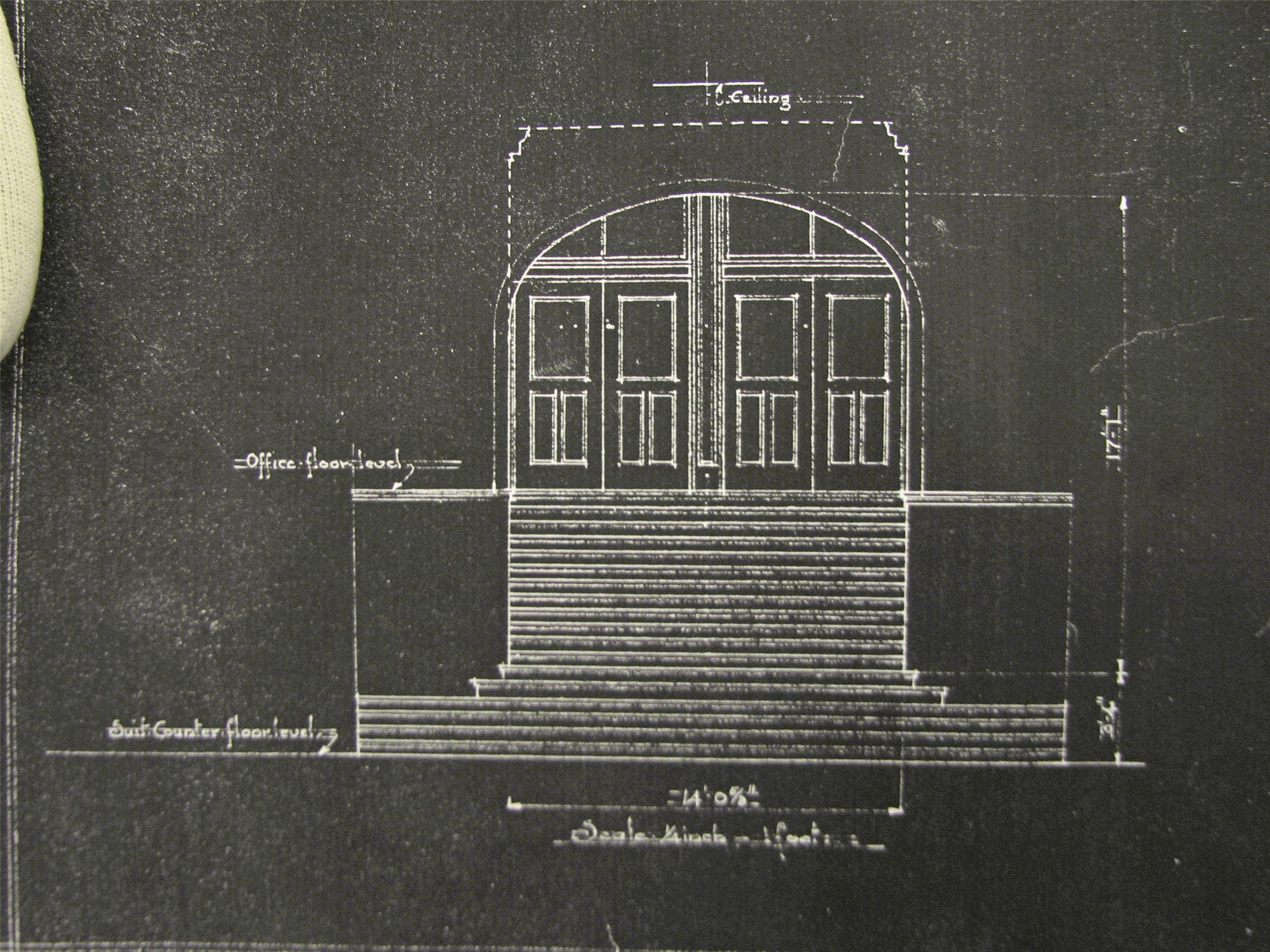

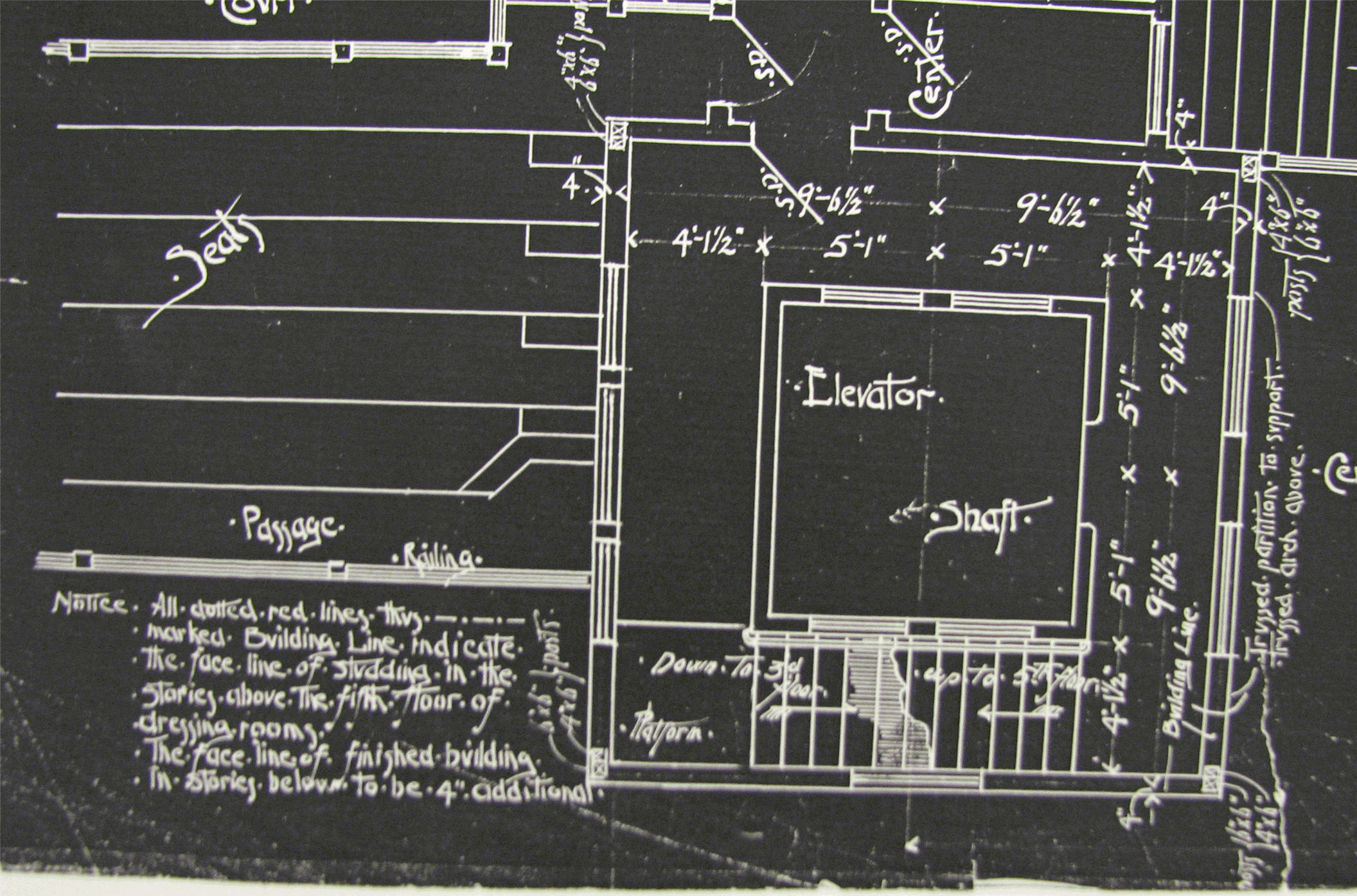

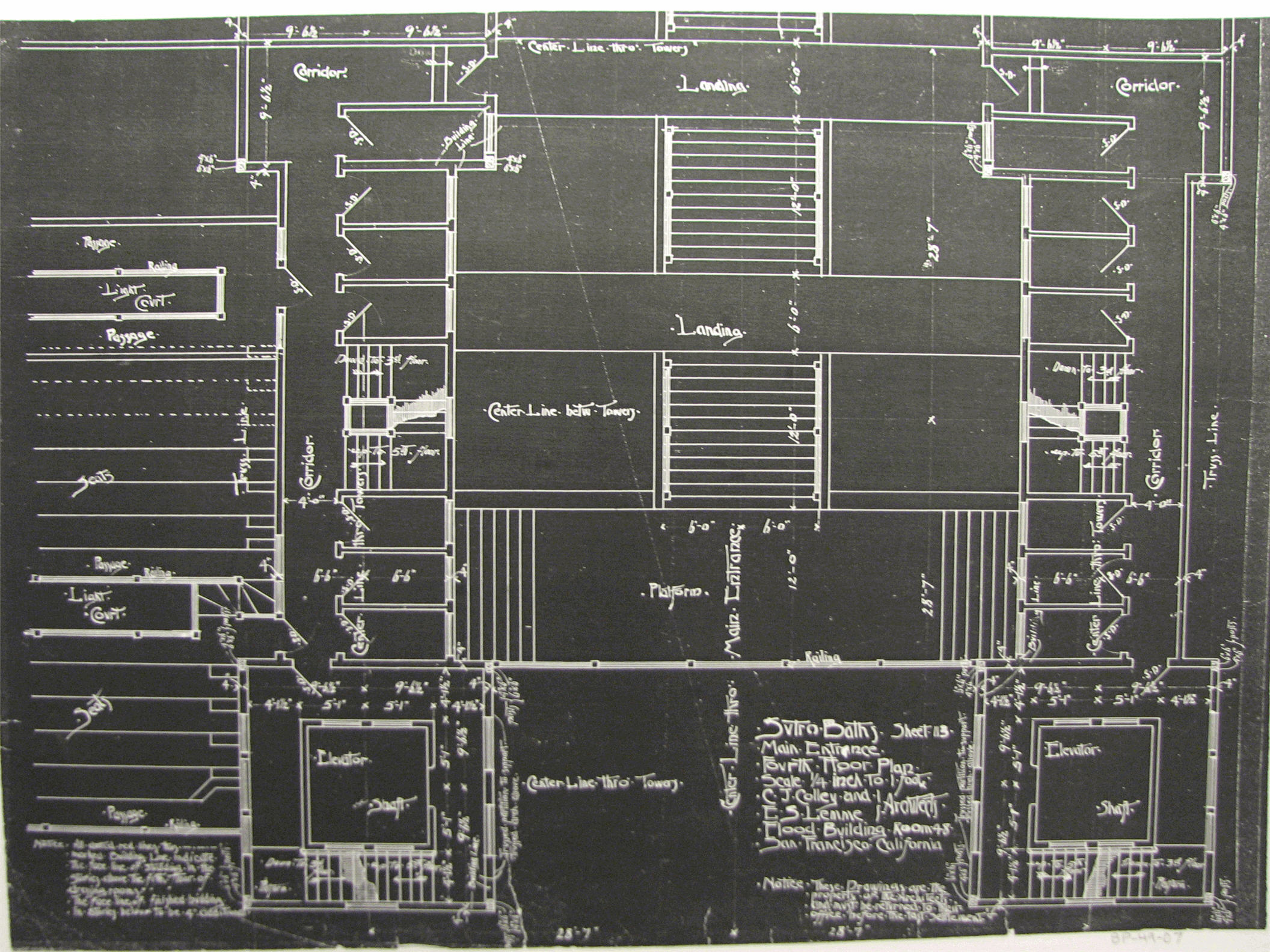

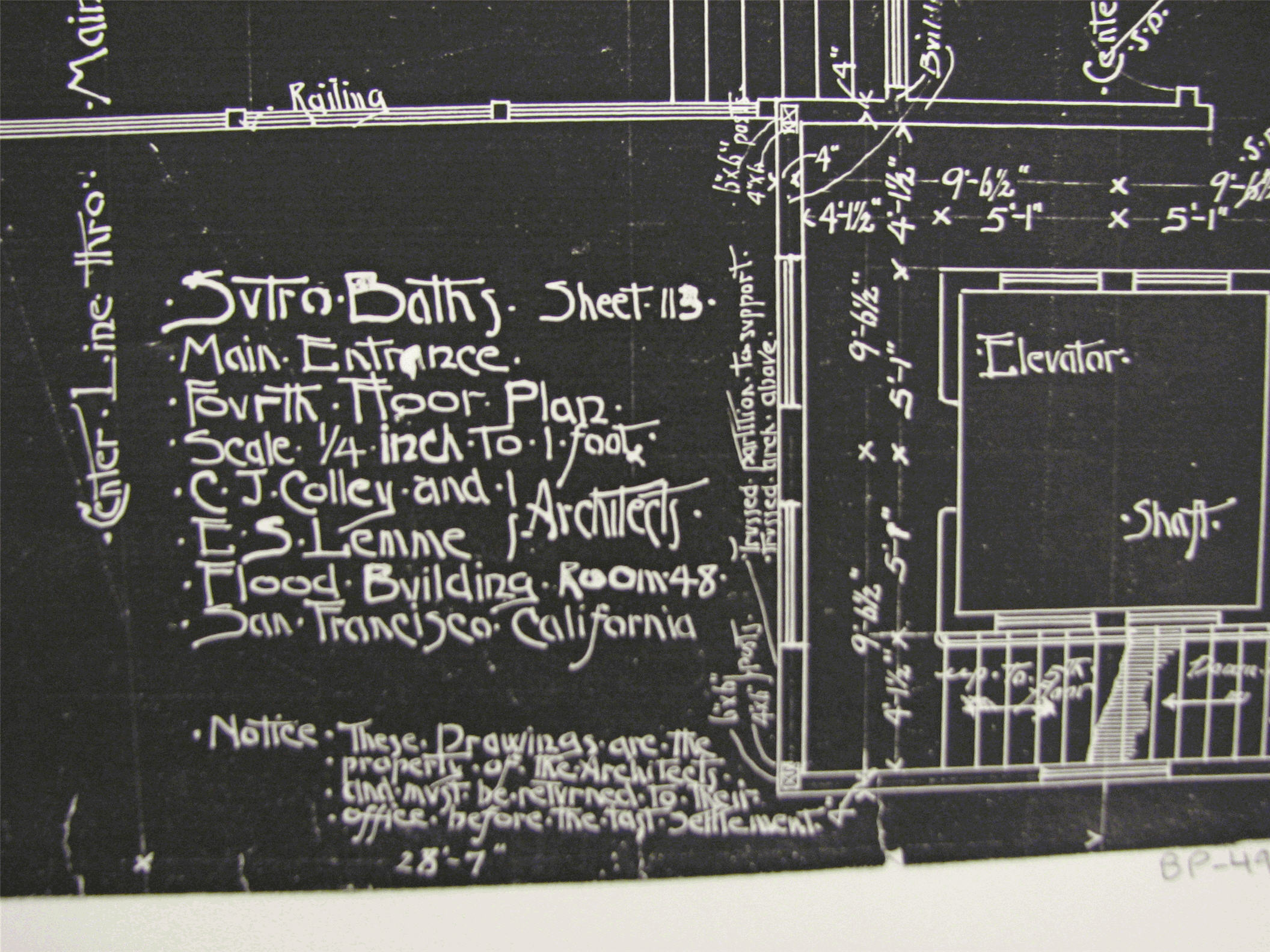

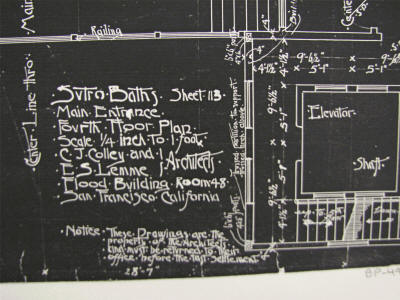

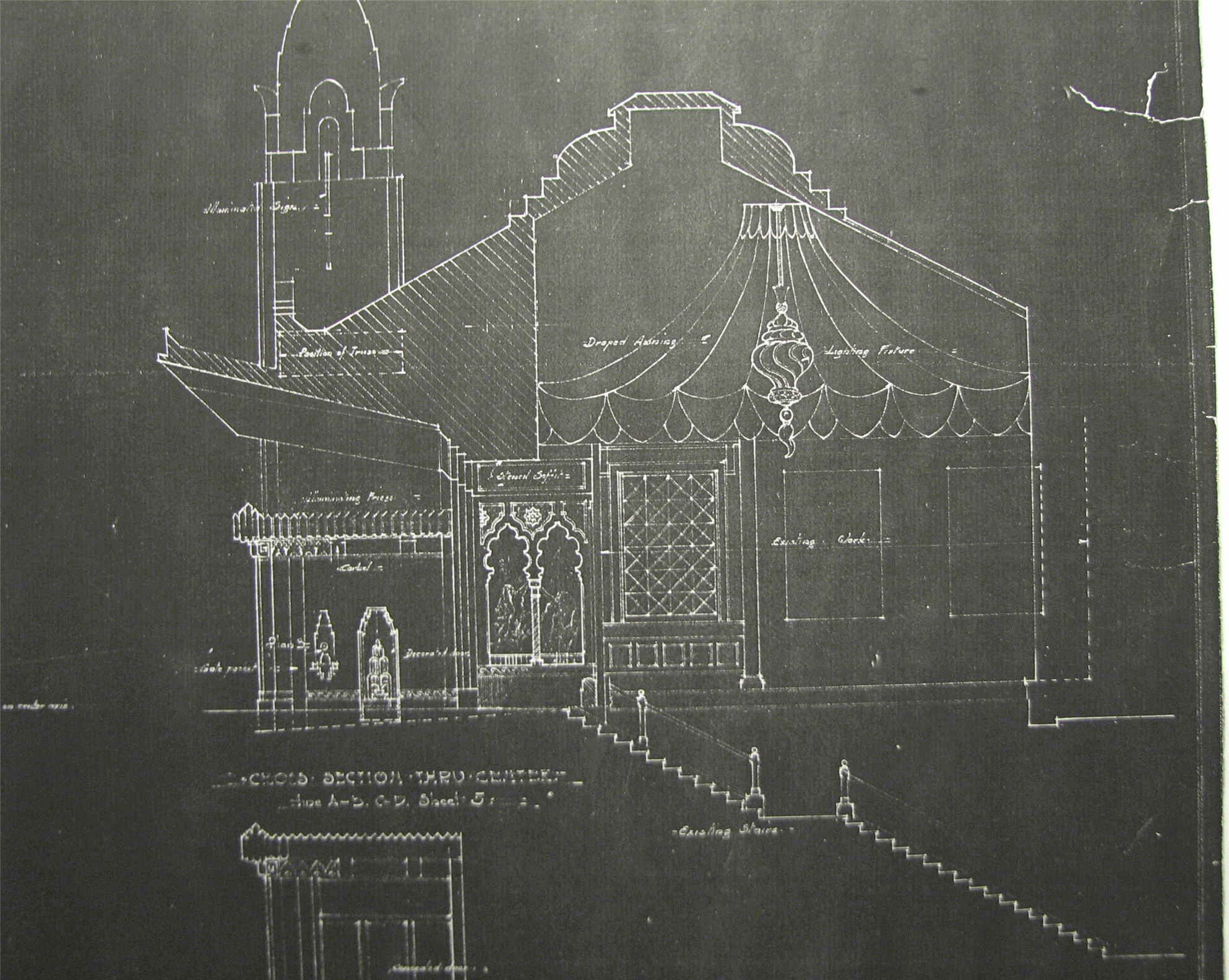

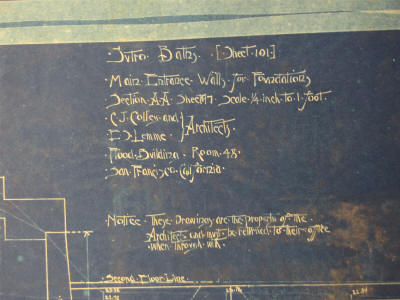

| 192? modifications to the main entrance |
 |

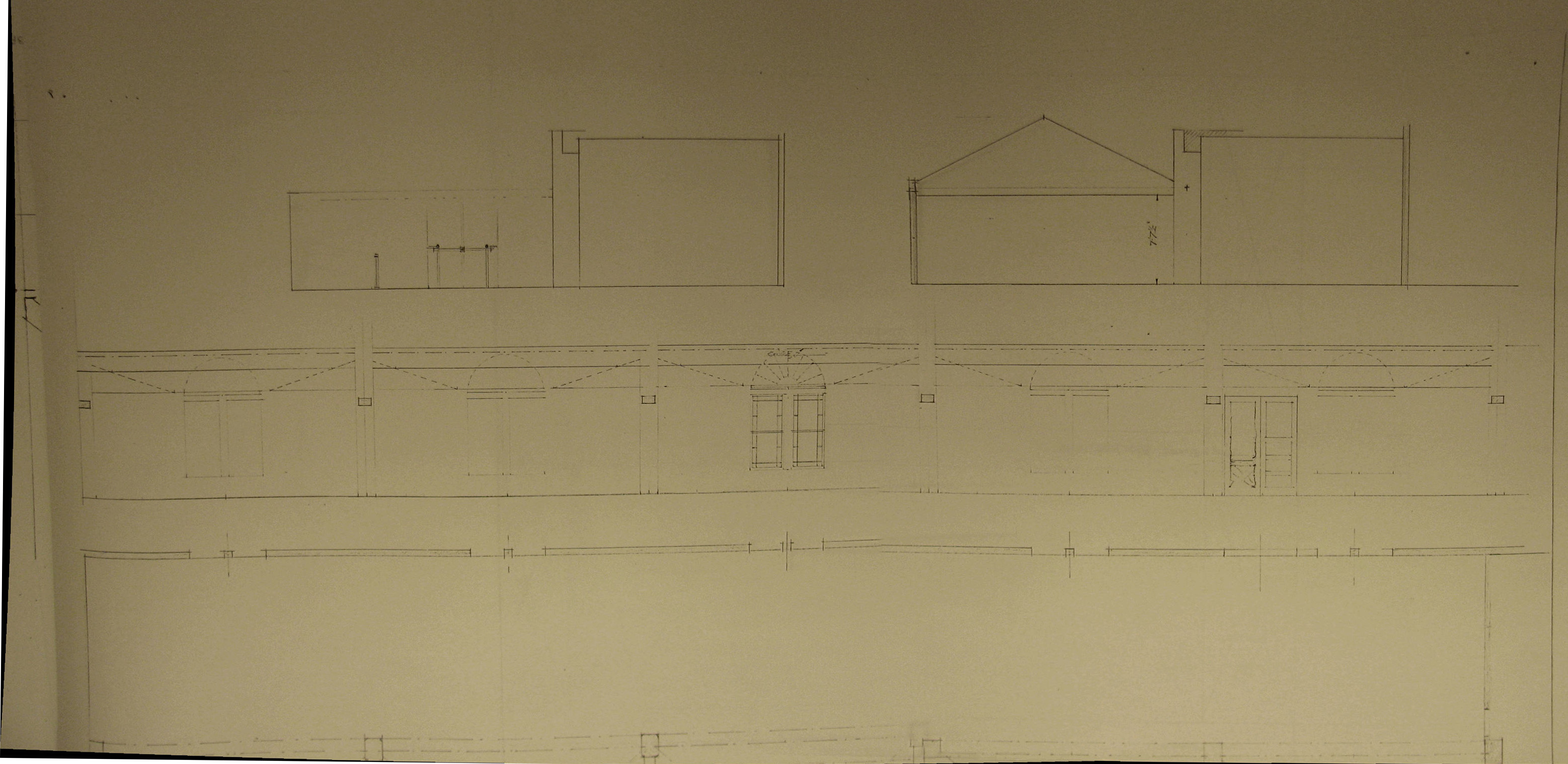

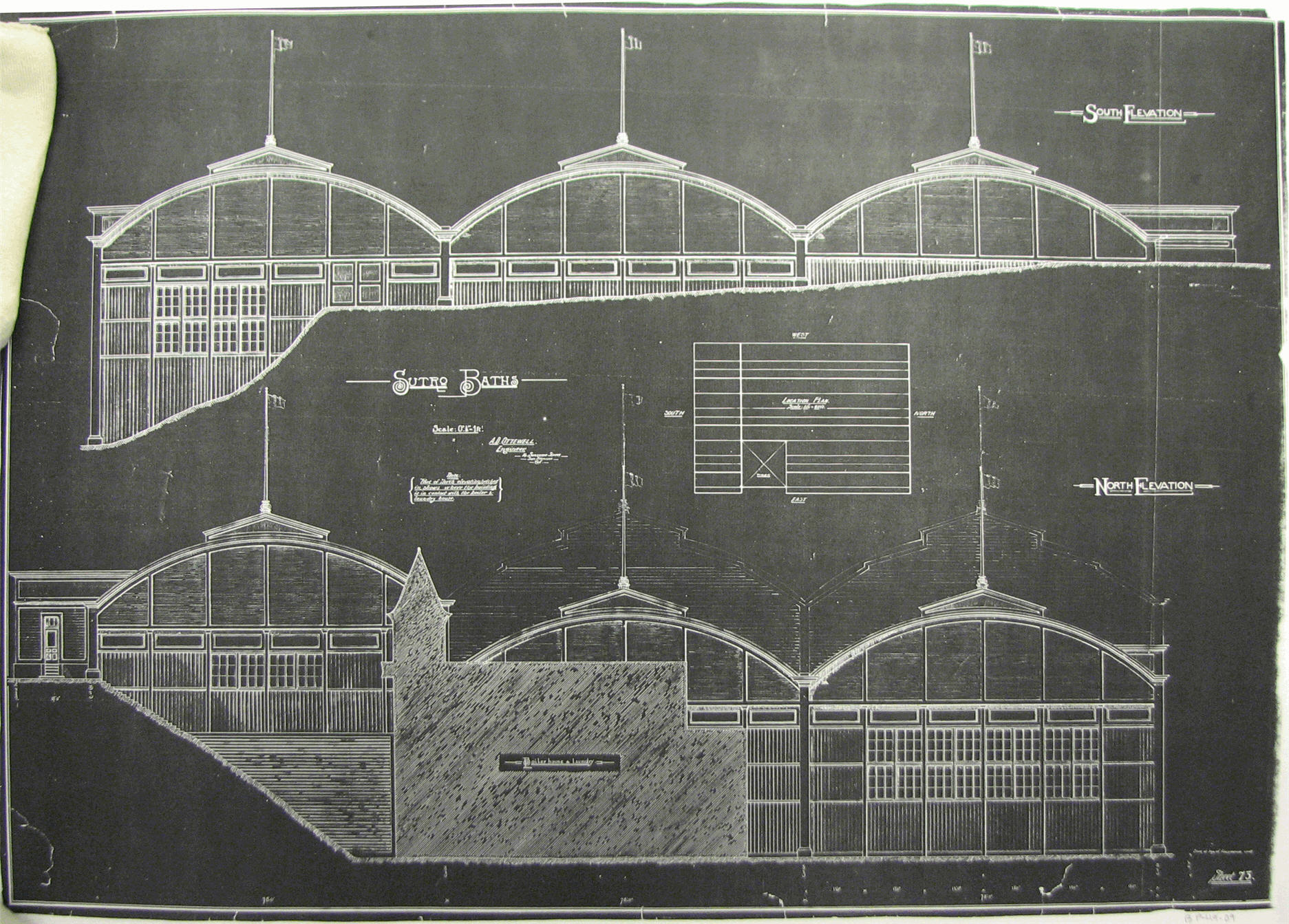

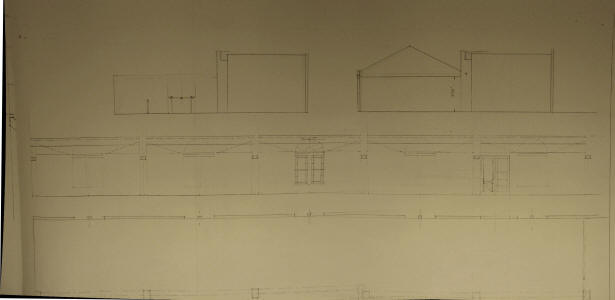

| Elevations of North and South Walls |
 |

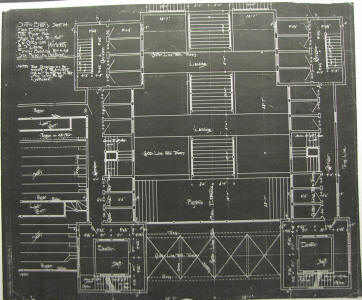

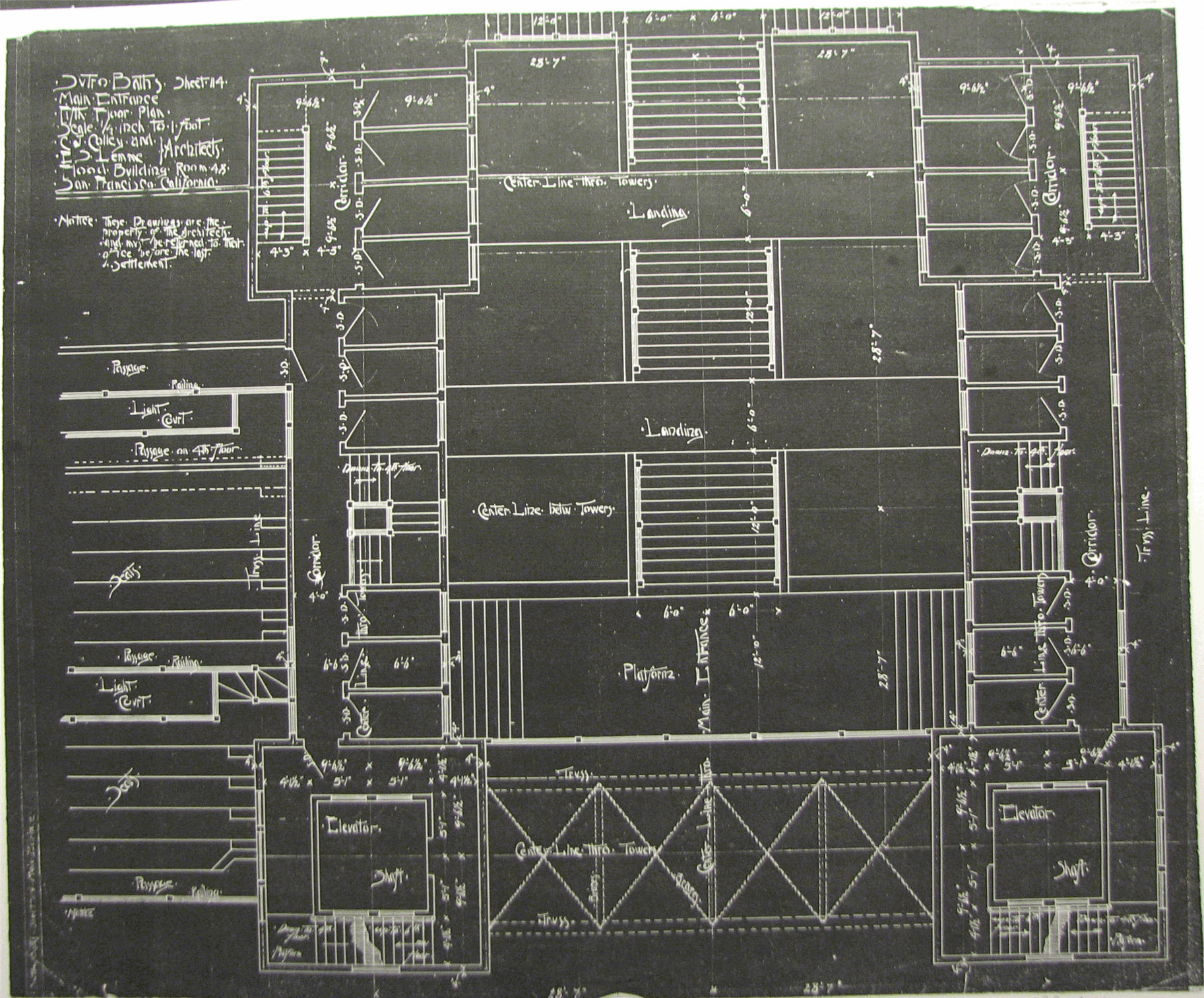

| Early version of one of the floors in the buildings flanking the main stair case. Photos show that they were not built according to this plan. |
 |
| Another early version of one of the floors in the buildings flanking the main stair case. Photos show that they were not built according to this plan |
|
 |
|

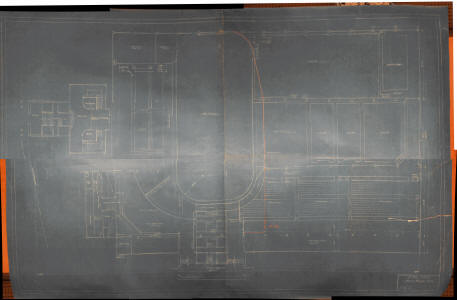

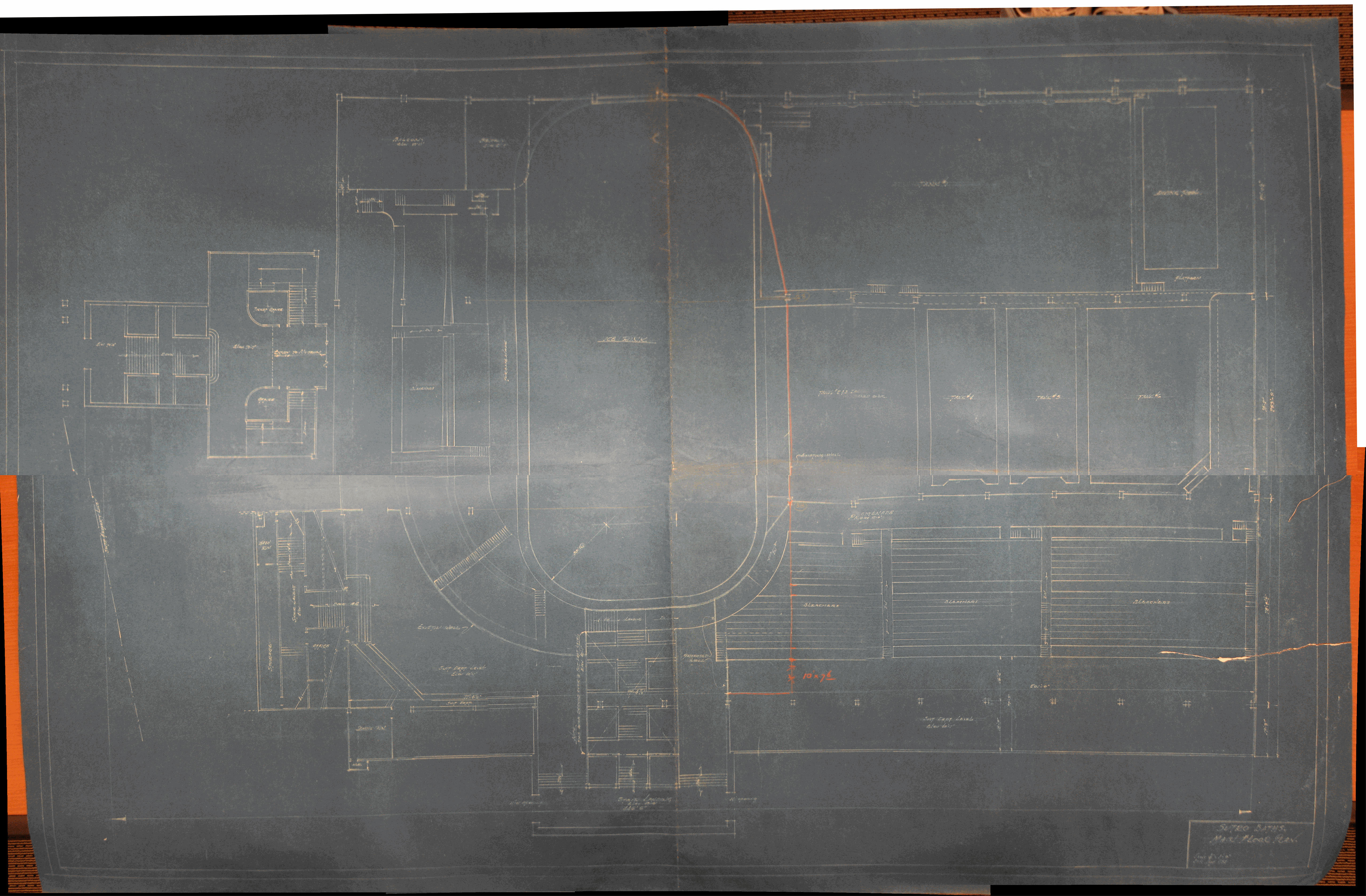

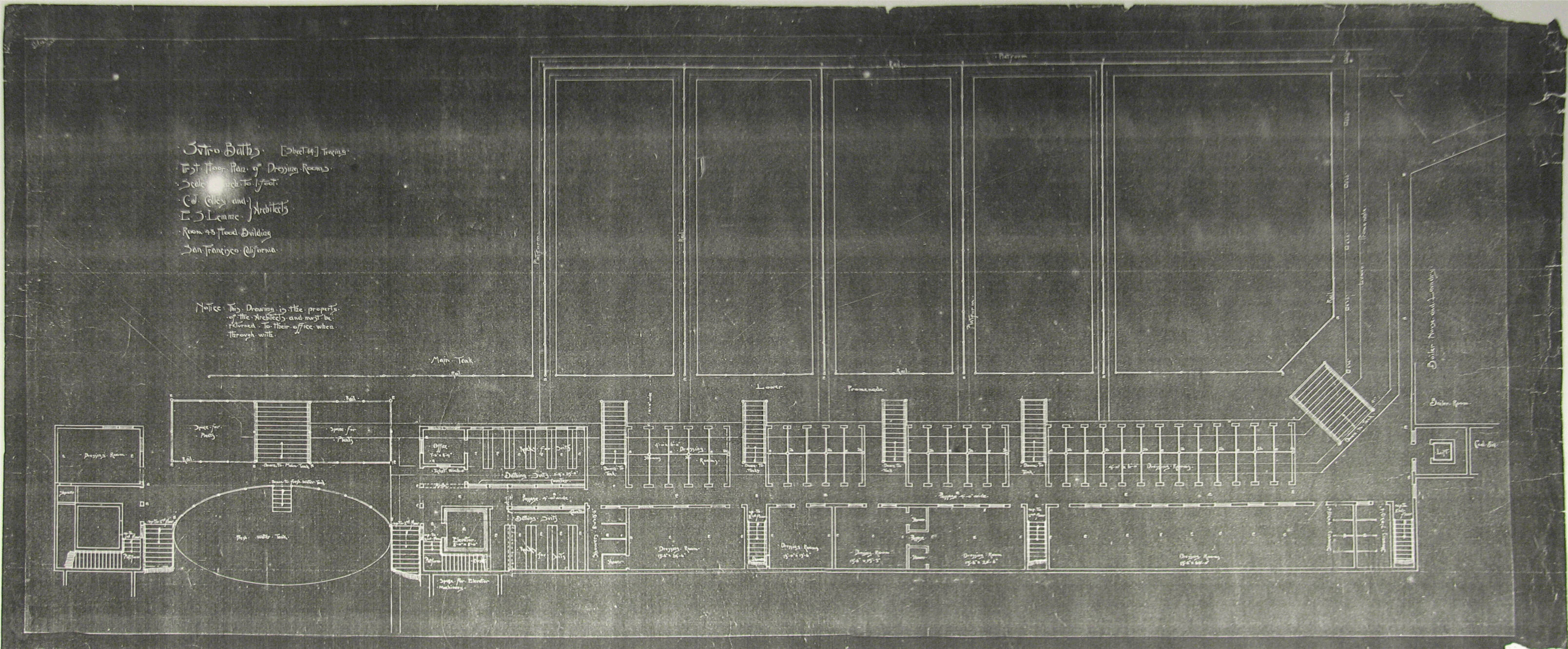

| Floor Plan with the Ice rink |
 |
| Roof Truss detail |
 |

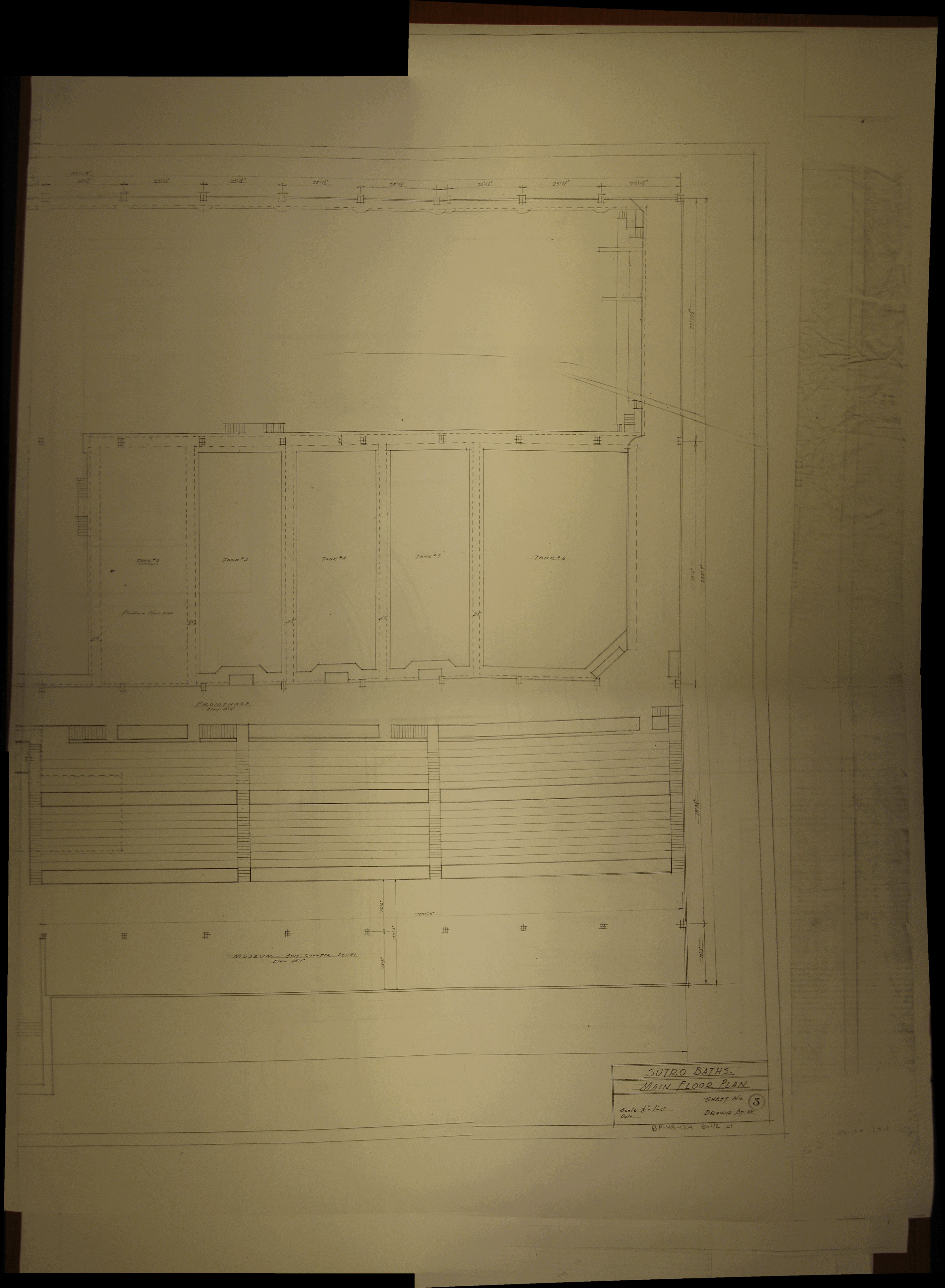

| Floor Plan before the Ice Rink was built |
  |

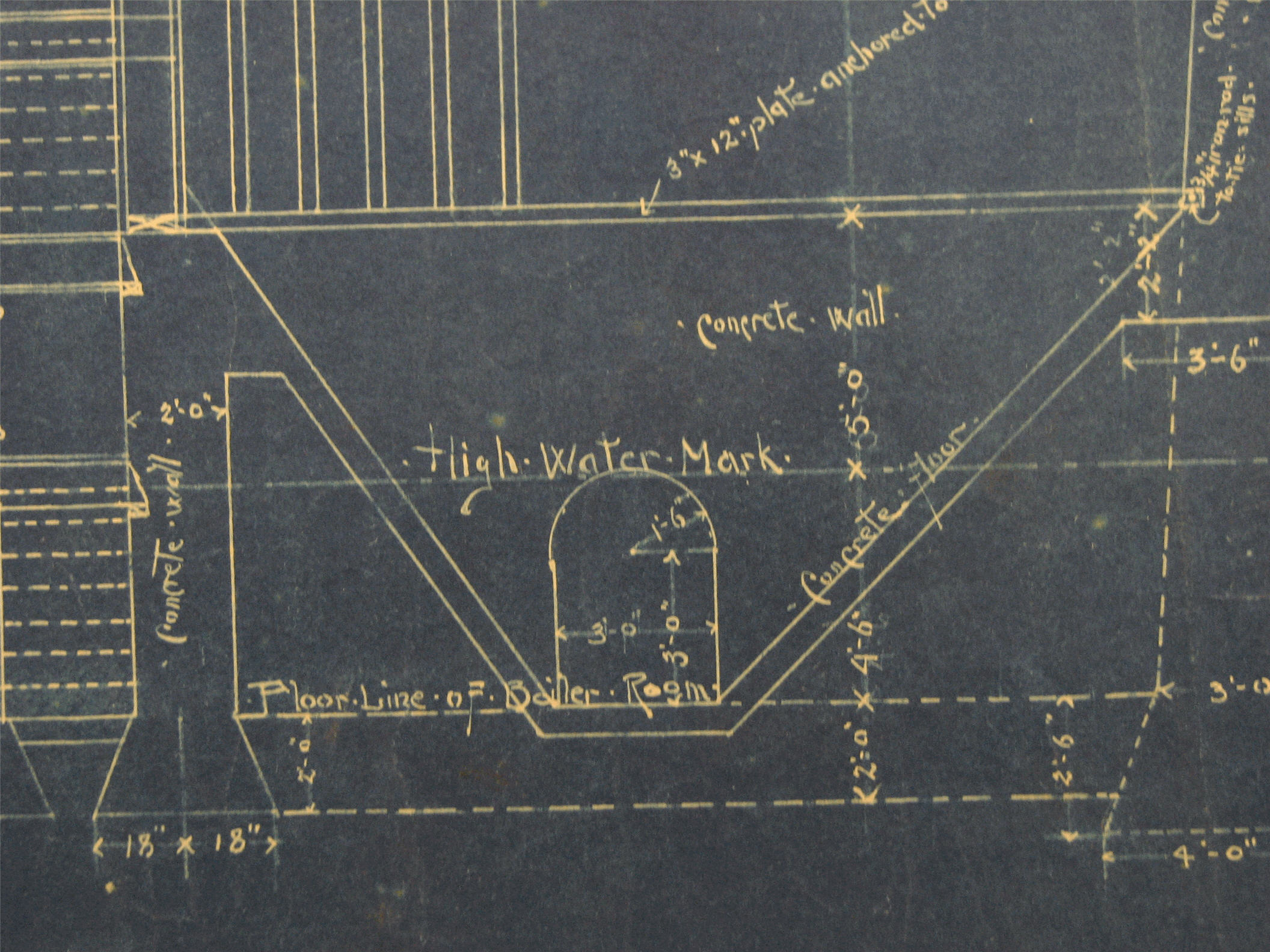

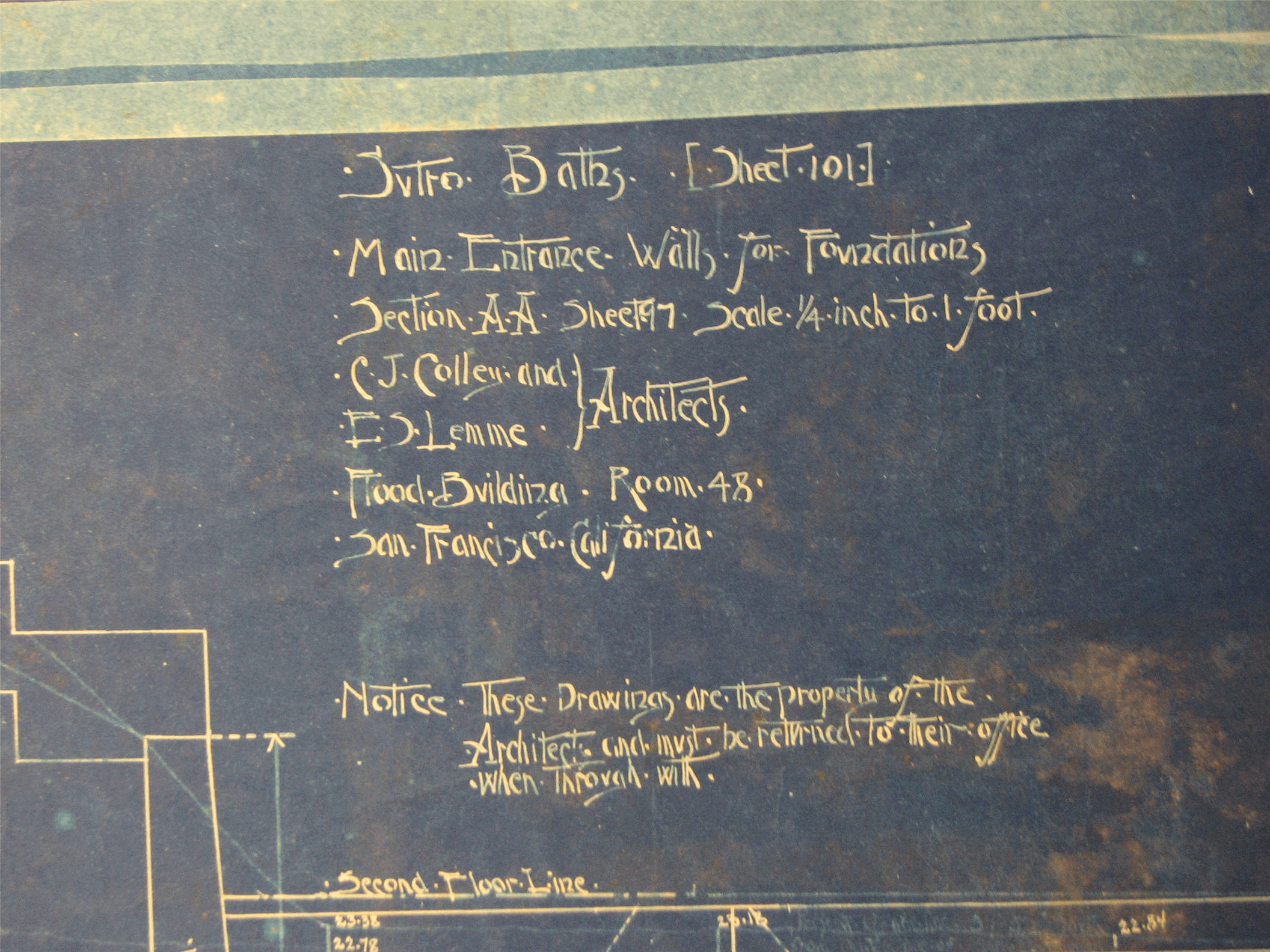

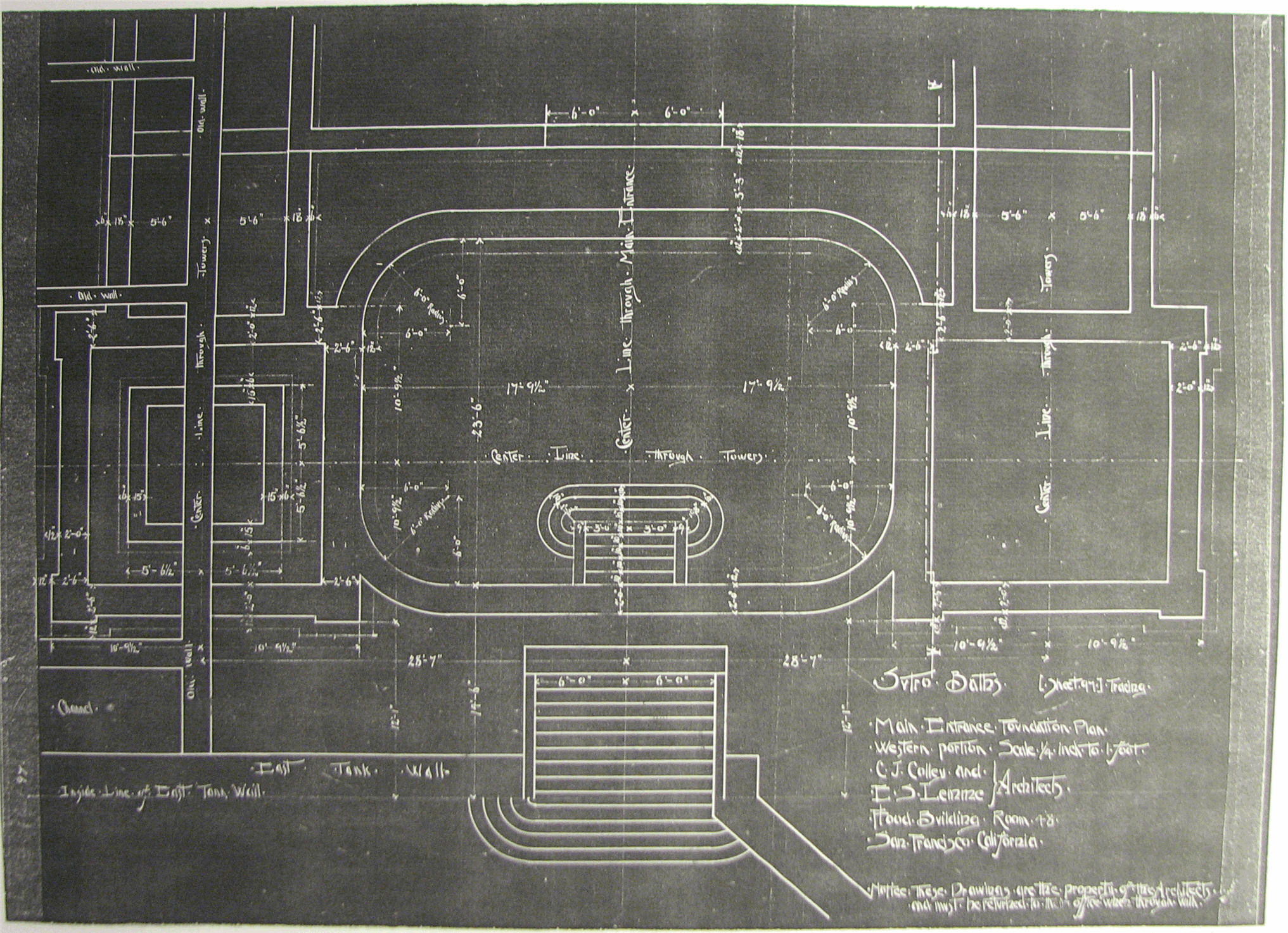

| Foundations and fresh water tank at bottom of main stairs |
 |
| Roof Truss detail |
 |

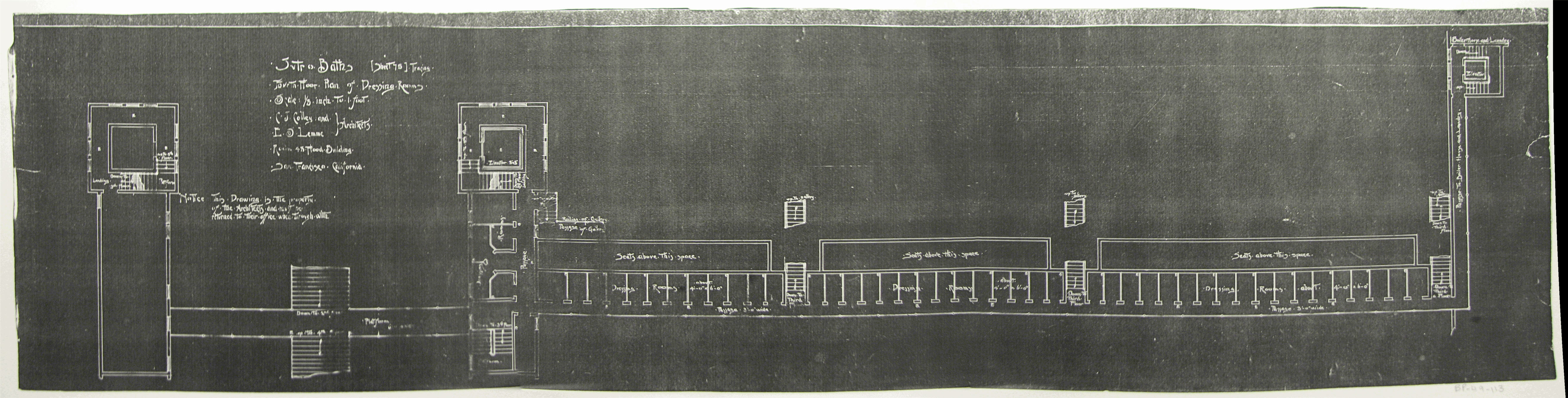

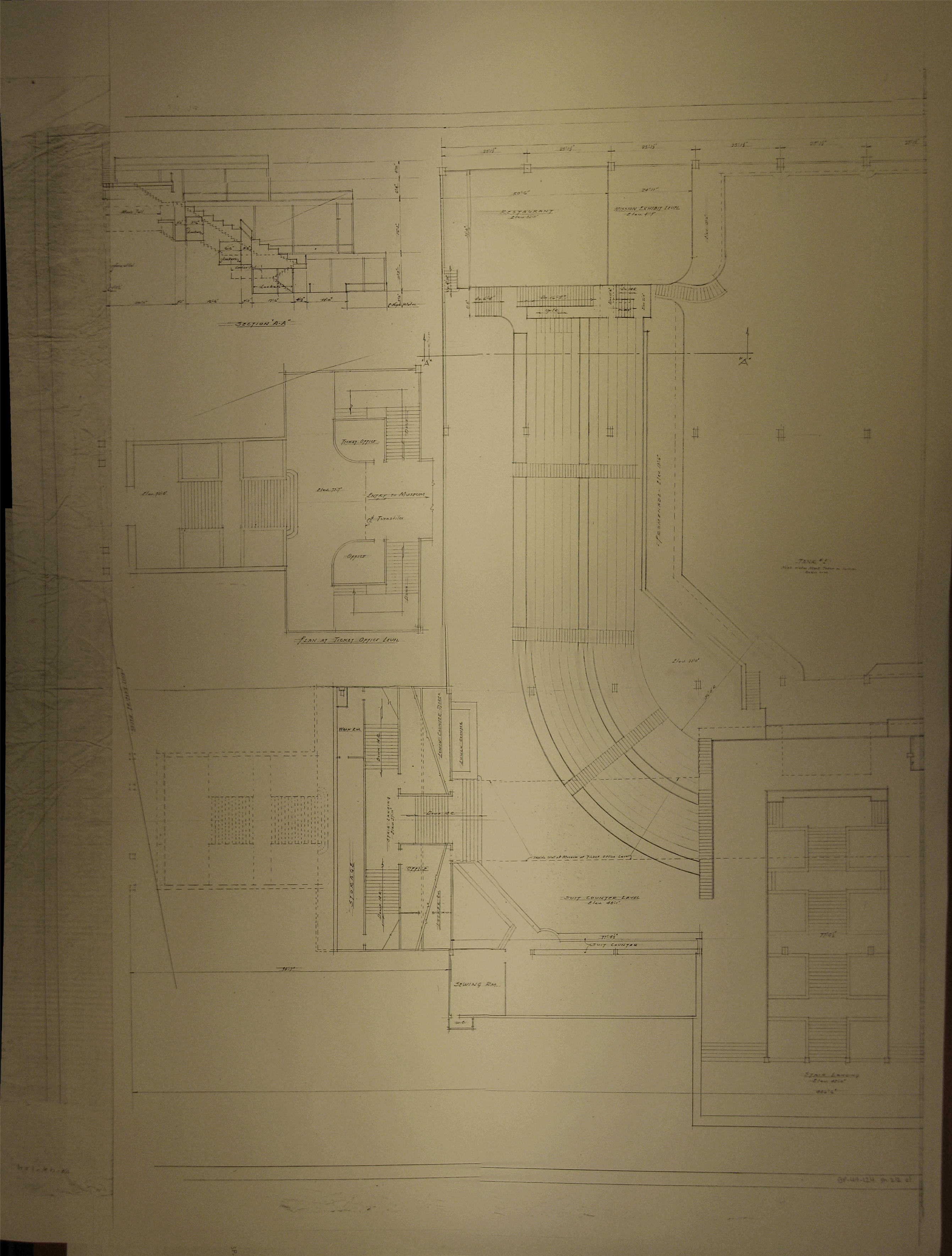

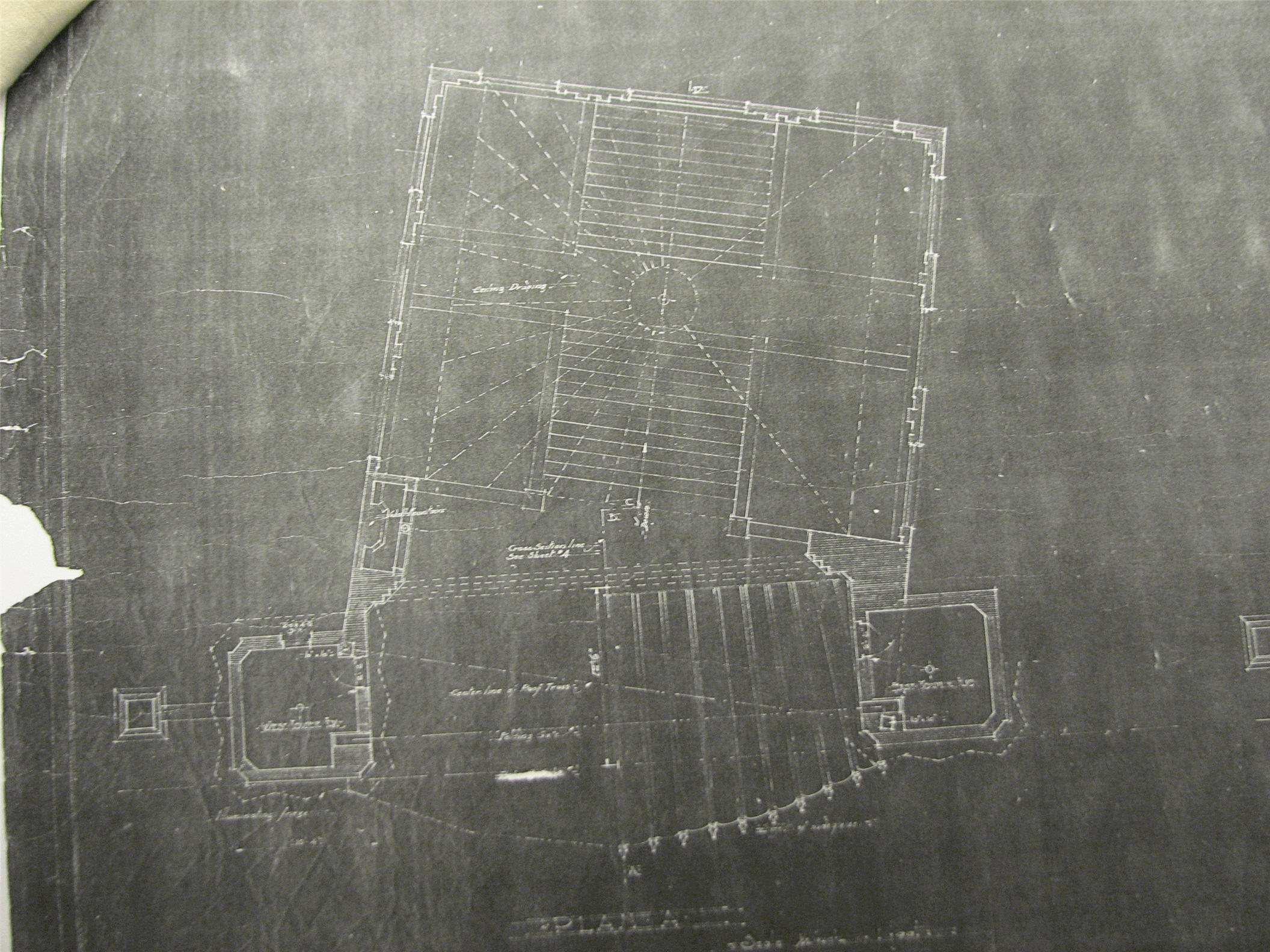

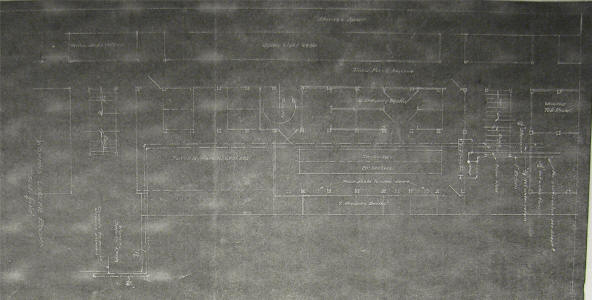

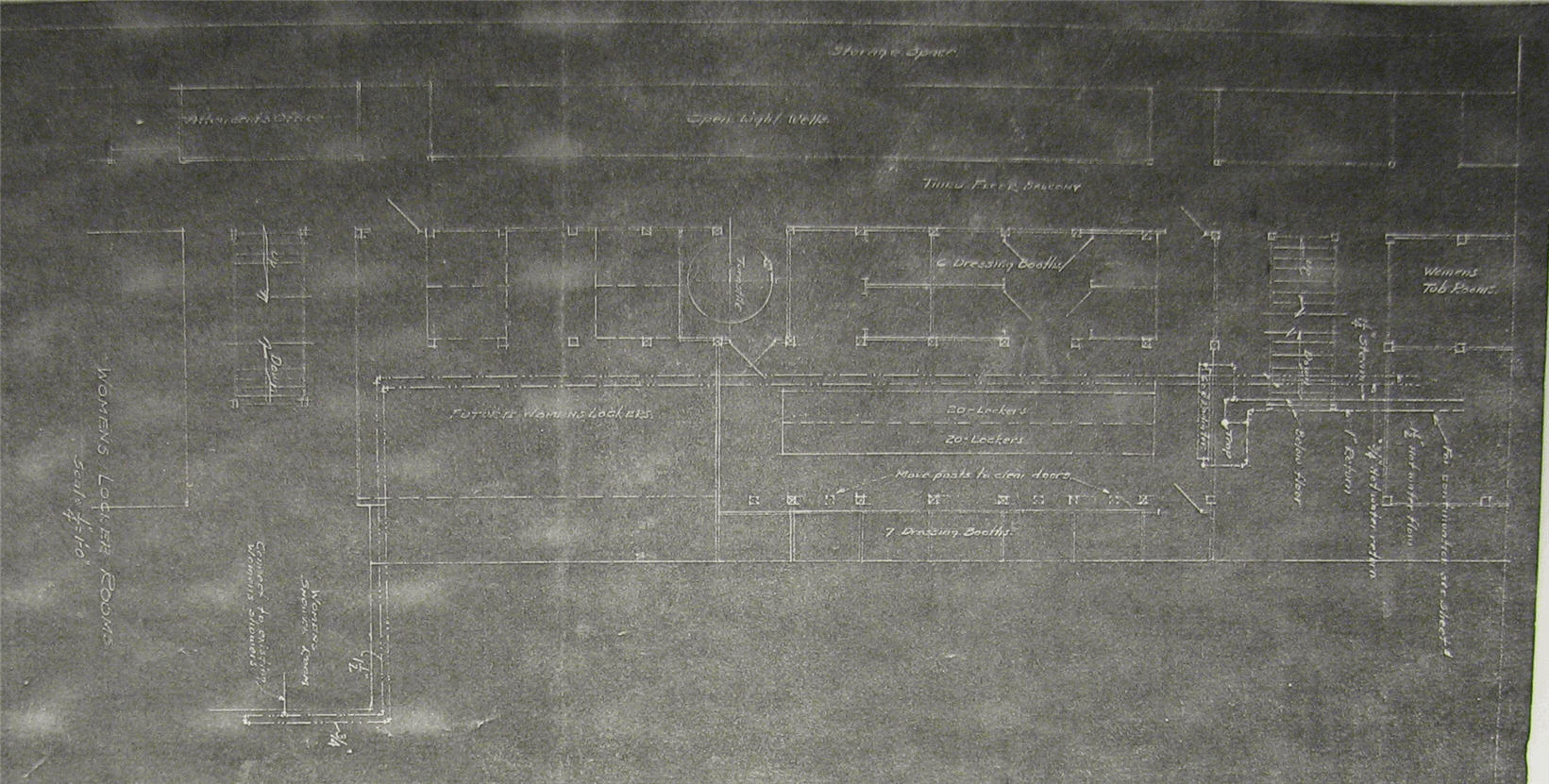

| Plan of an upper level of dressing rooms |
 |
| Plan of dressing rooms just above the tanks. The rooms facing the tanks were not constructed as shown because the roof support columns were in the way. See photos |
 |
 |
|

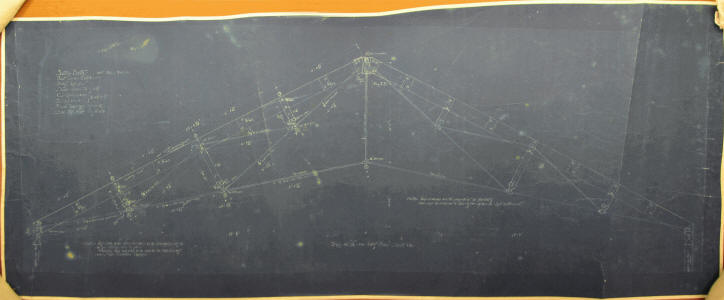

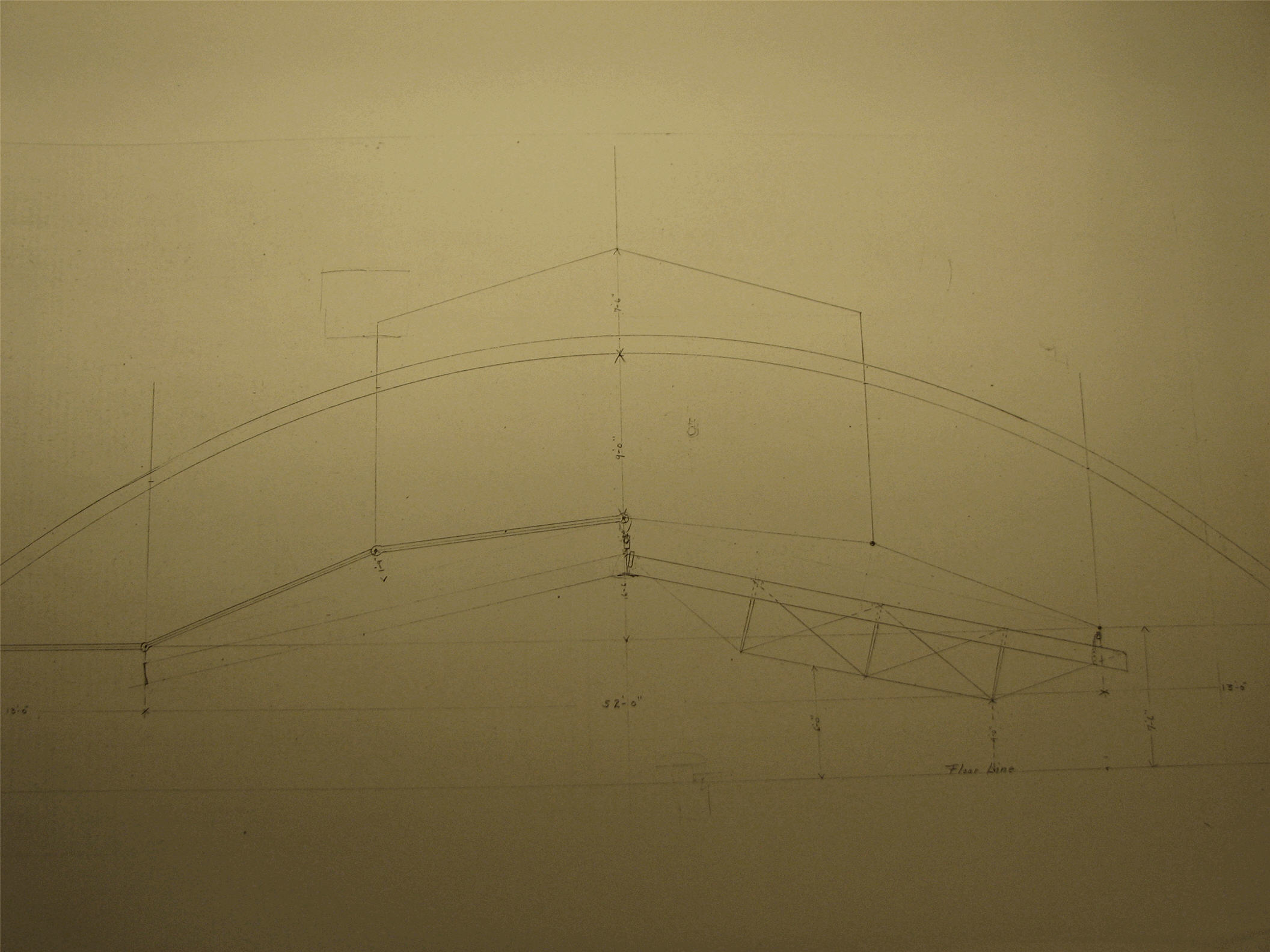

| Roof truss of a version of the Baths that was not built. |
 |

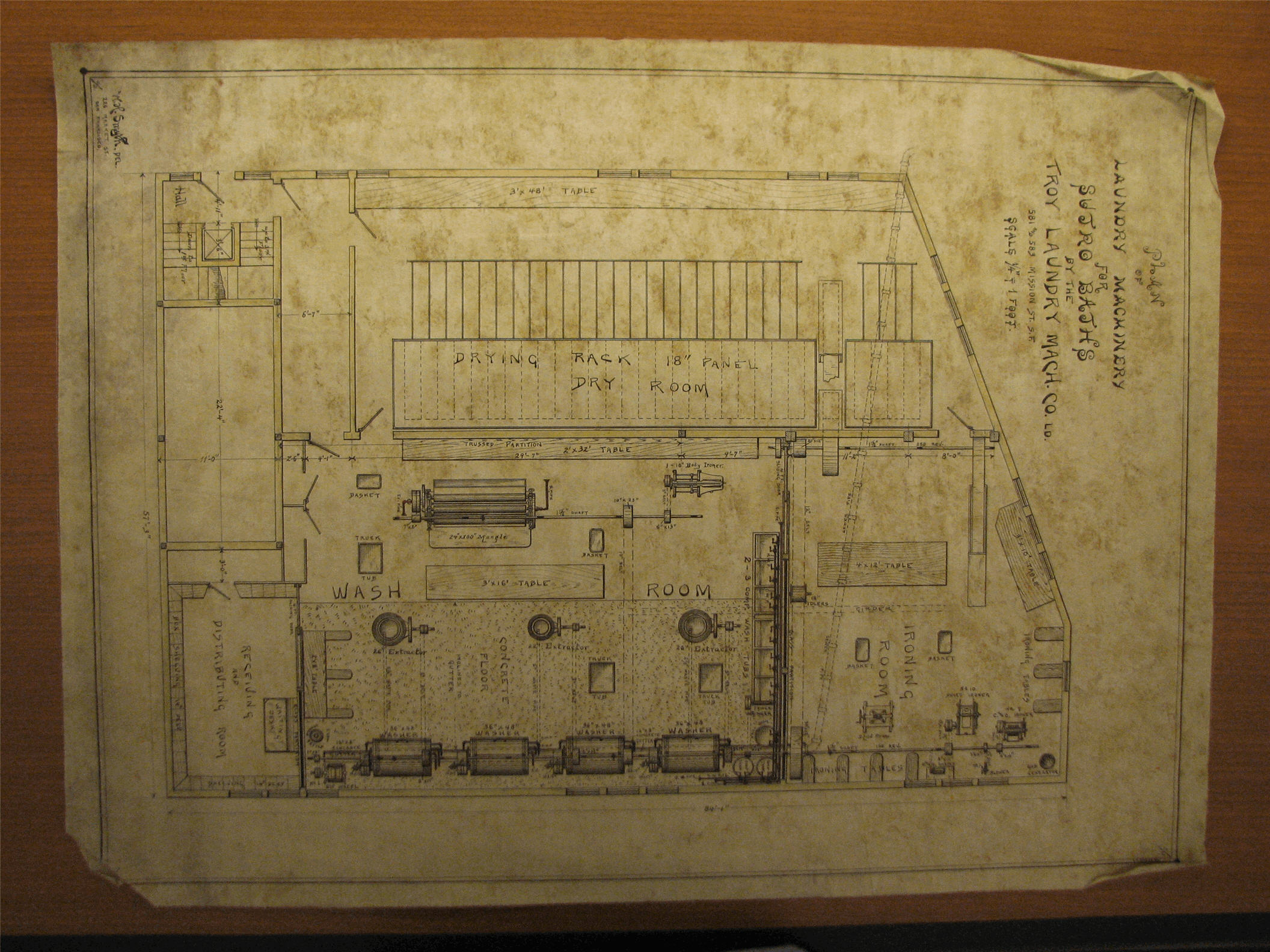

| Laundry Room Plan |
 |

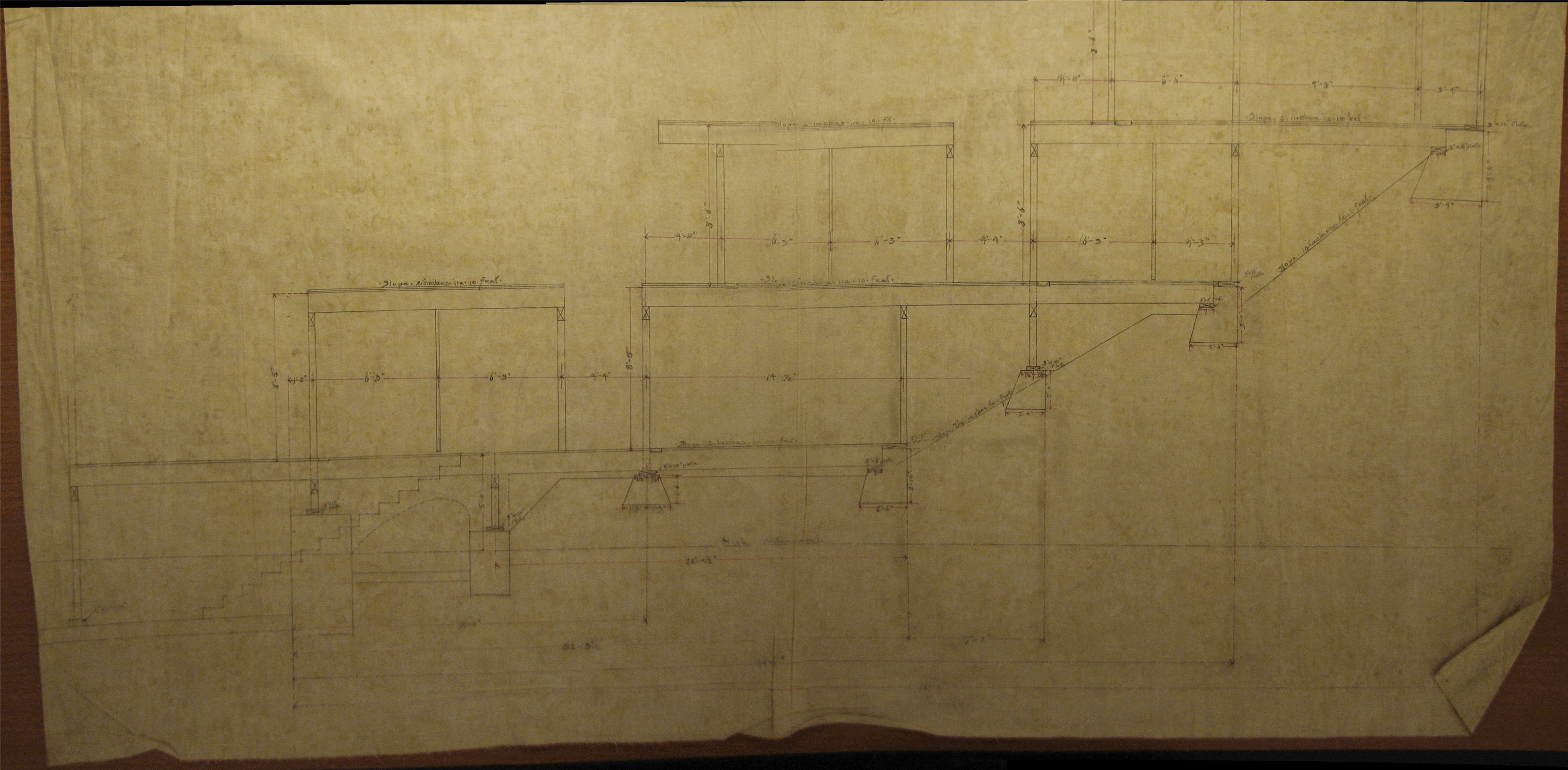

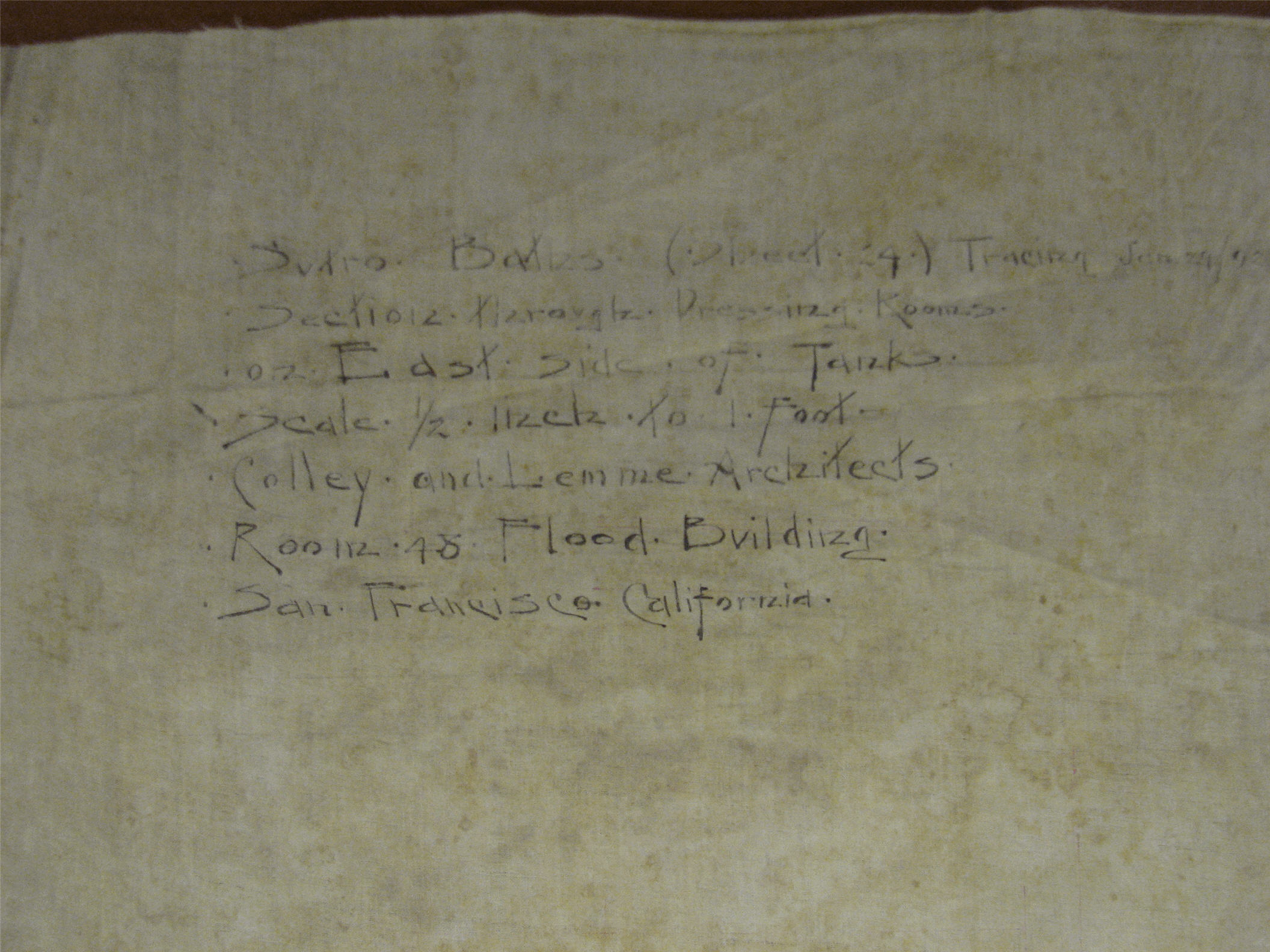

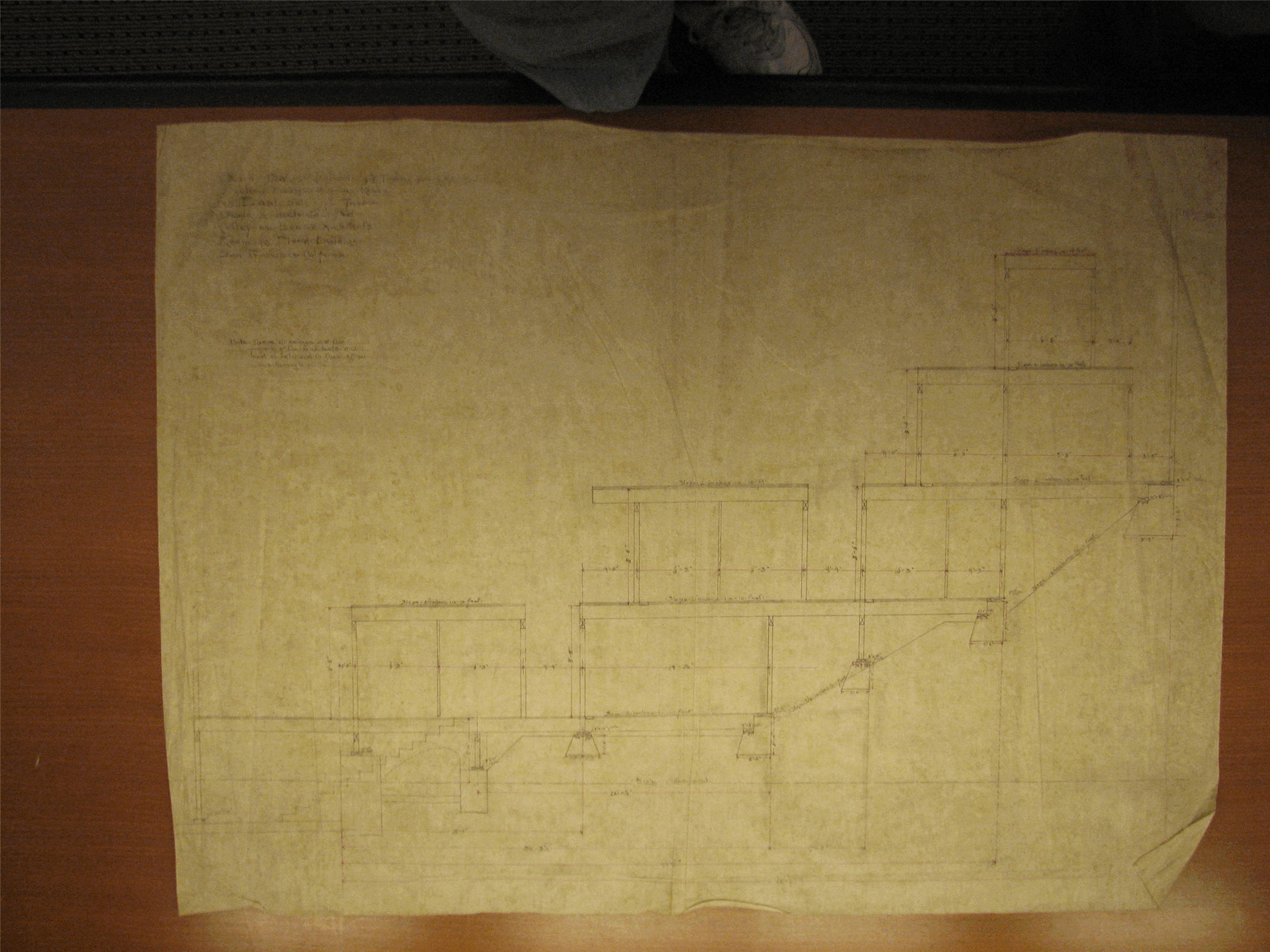

| Cross section of dressing room structural support under the seating. |
 |

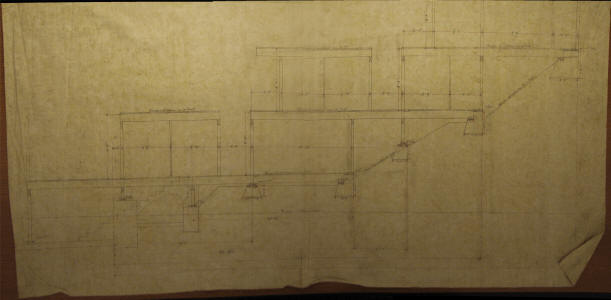

| Cross section of dressing room structural support under the seating |
|

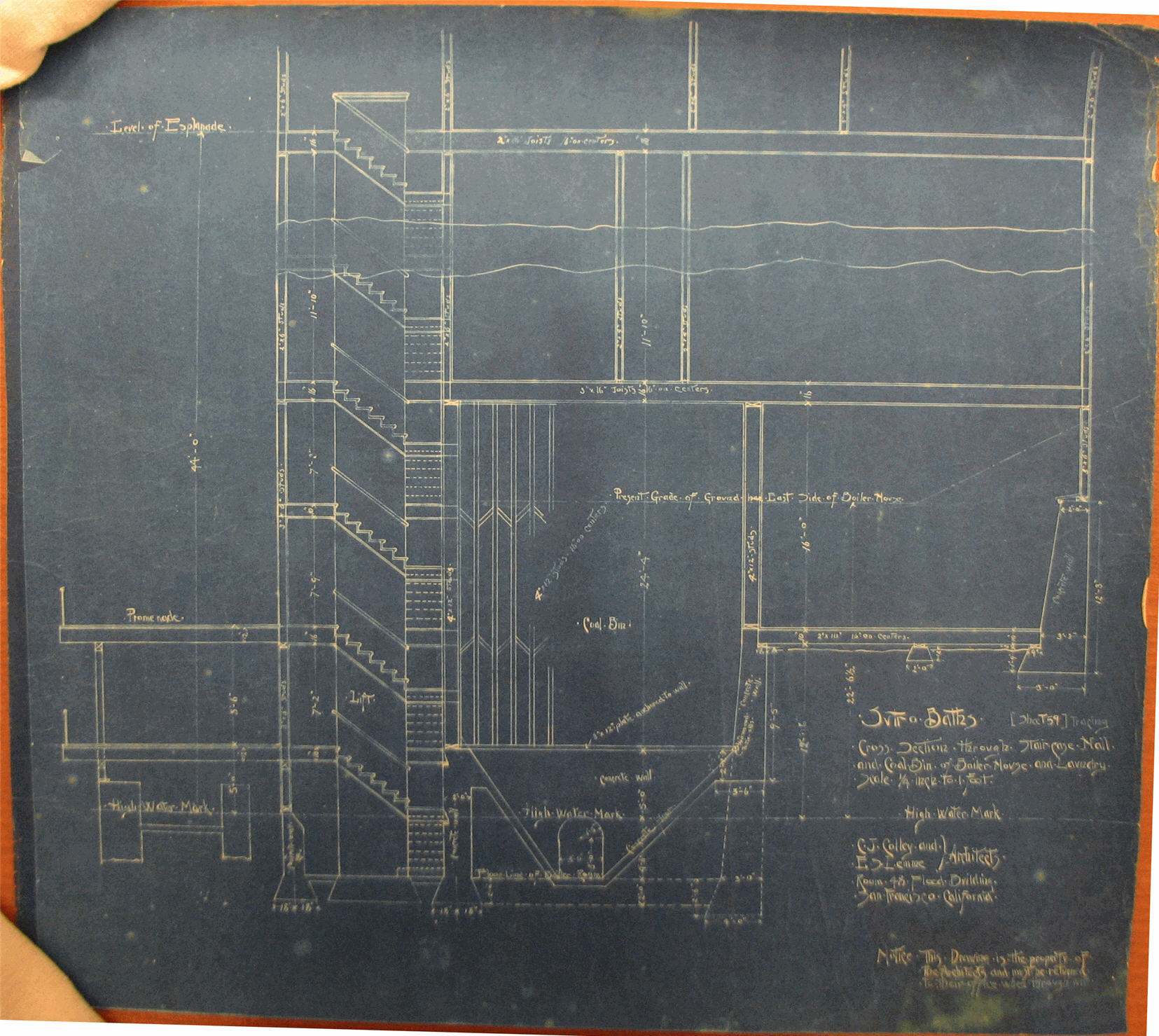

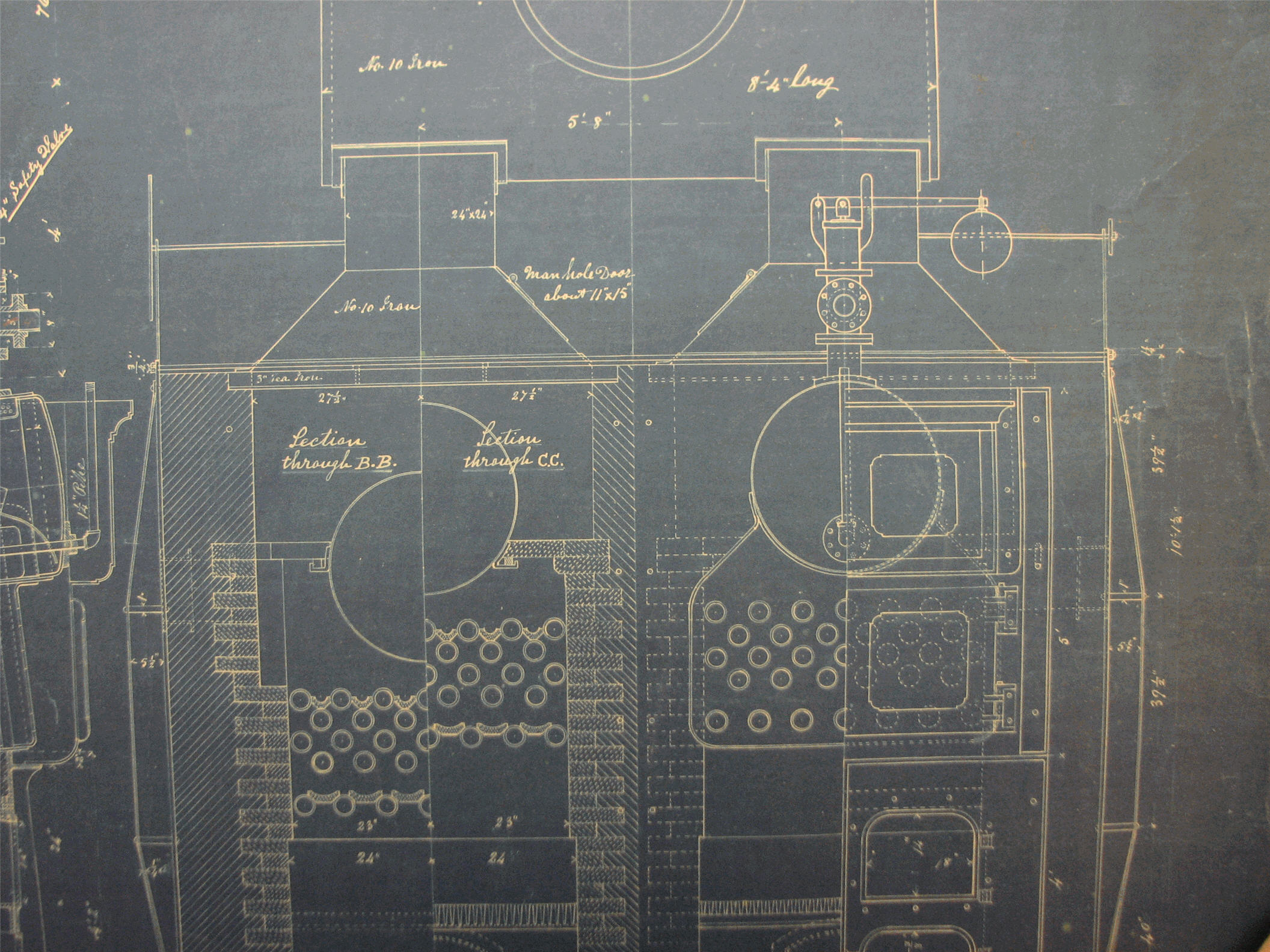

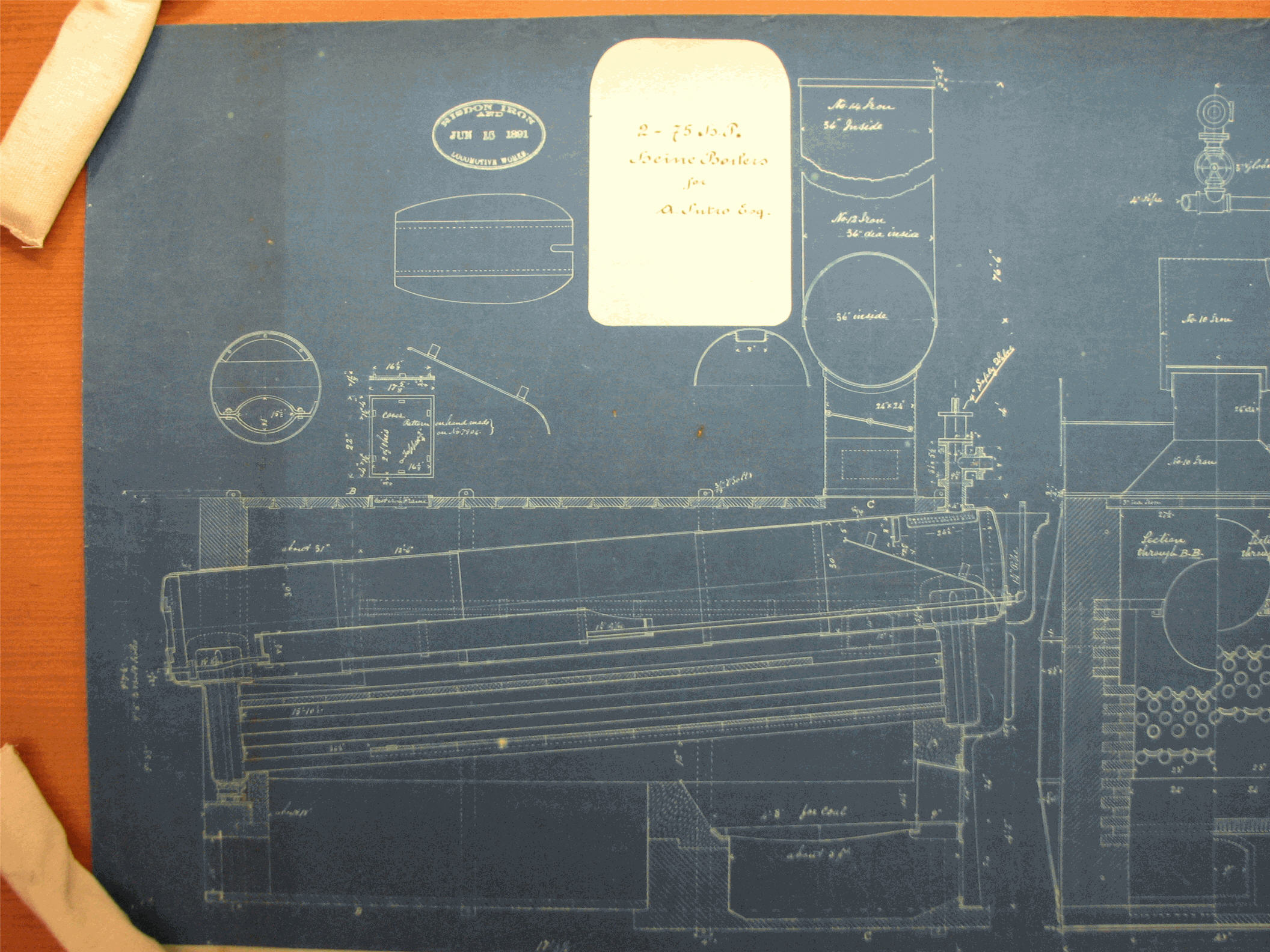

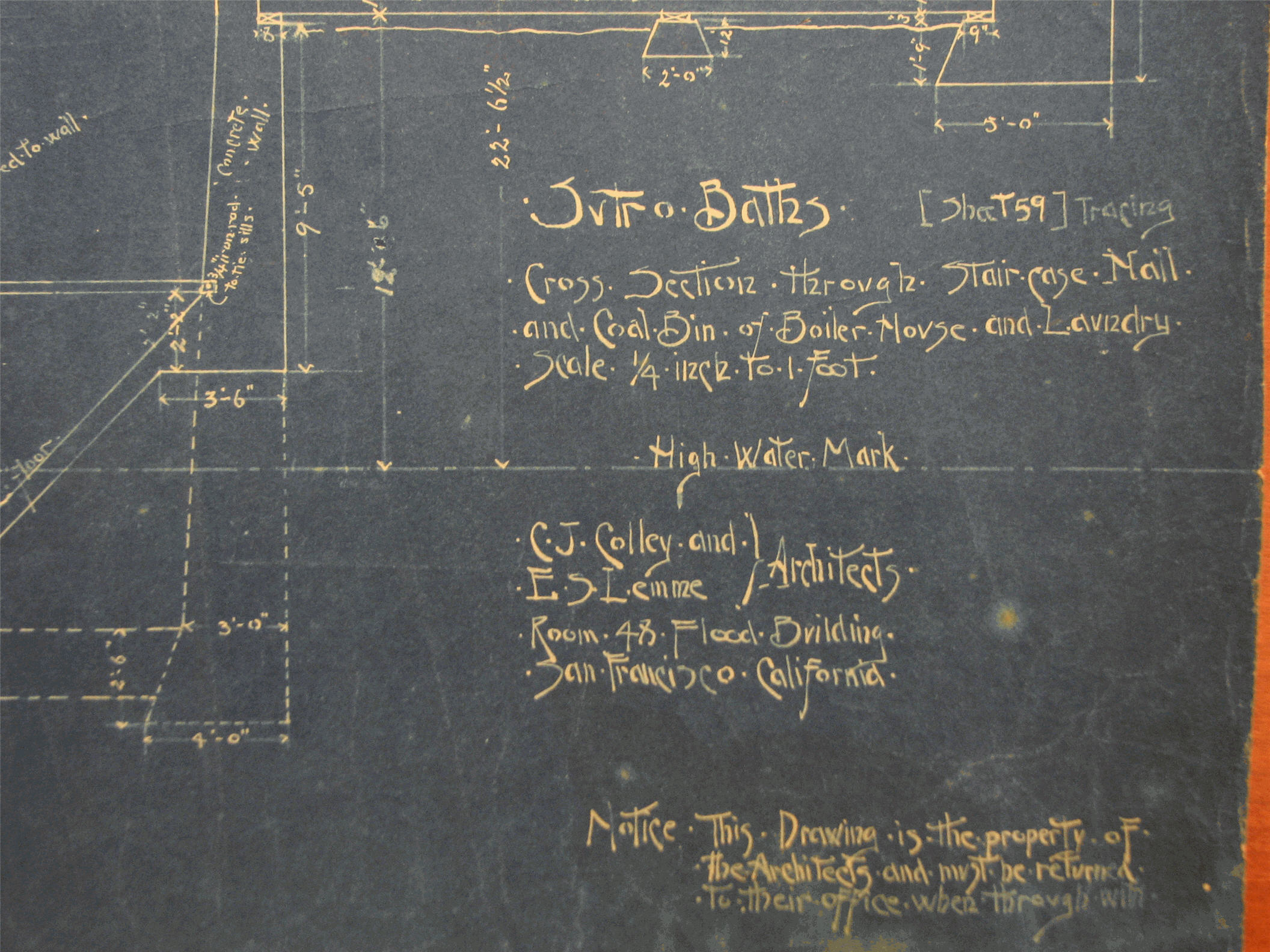

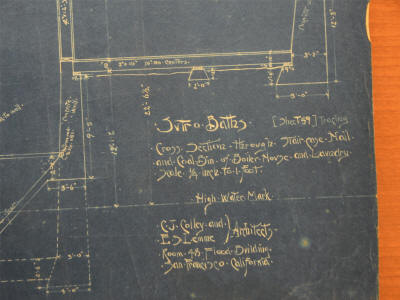

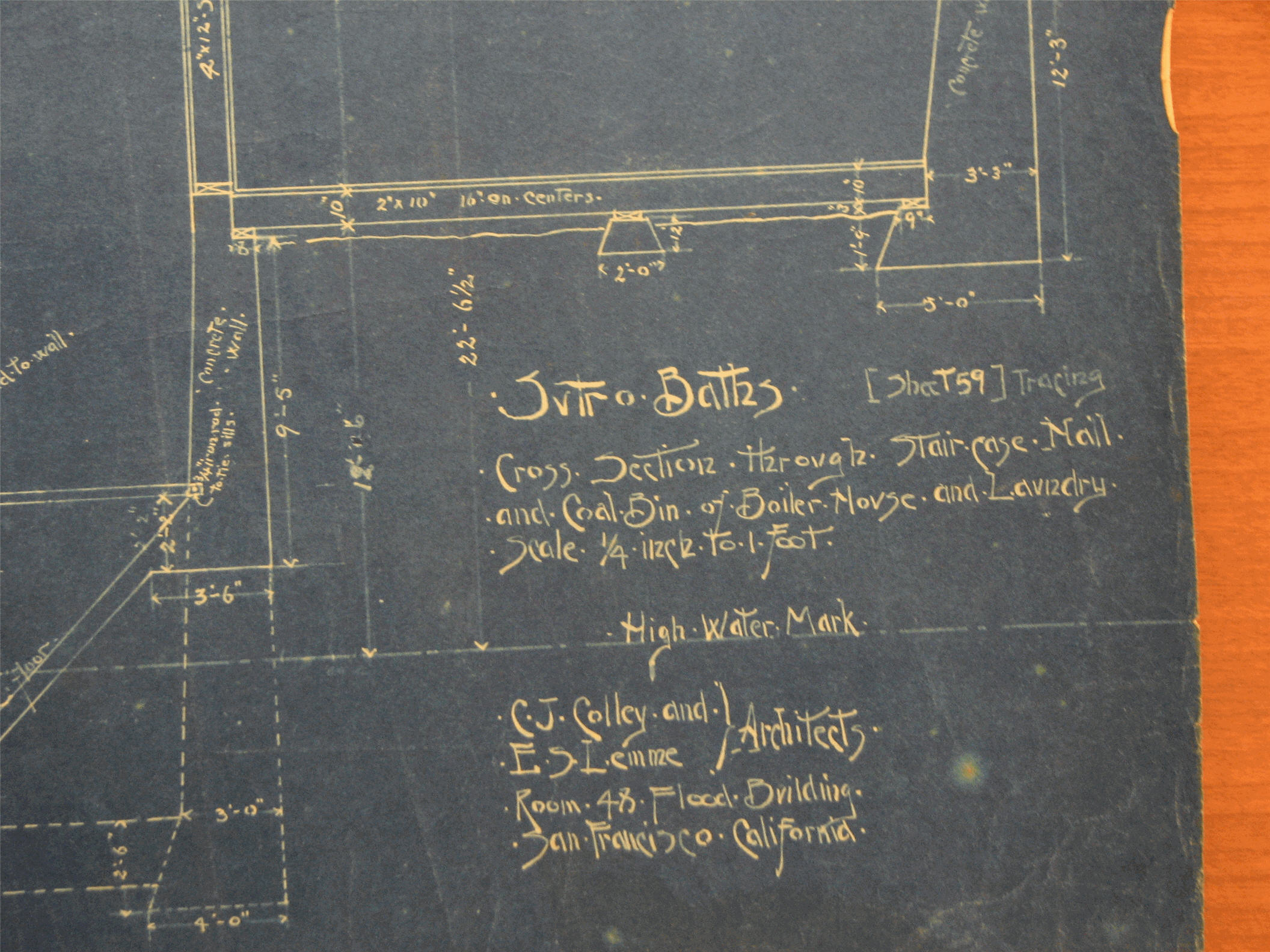

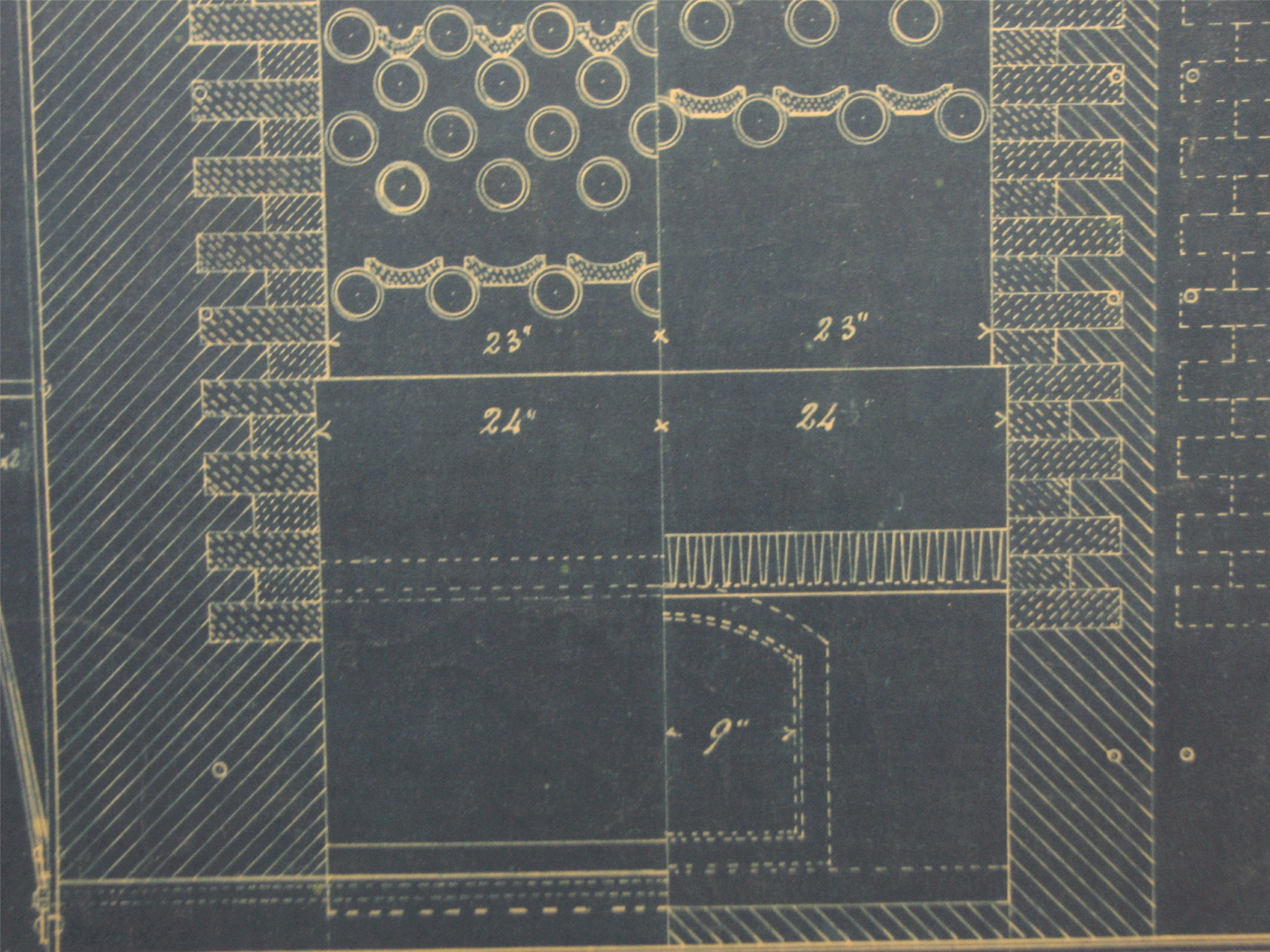

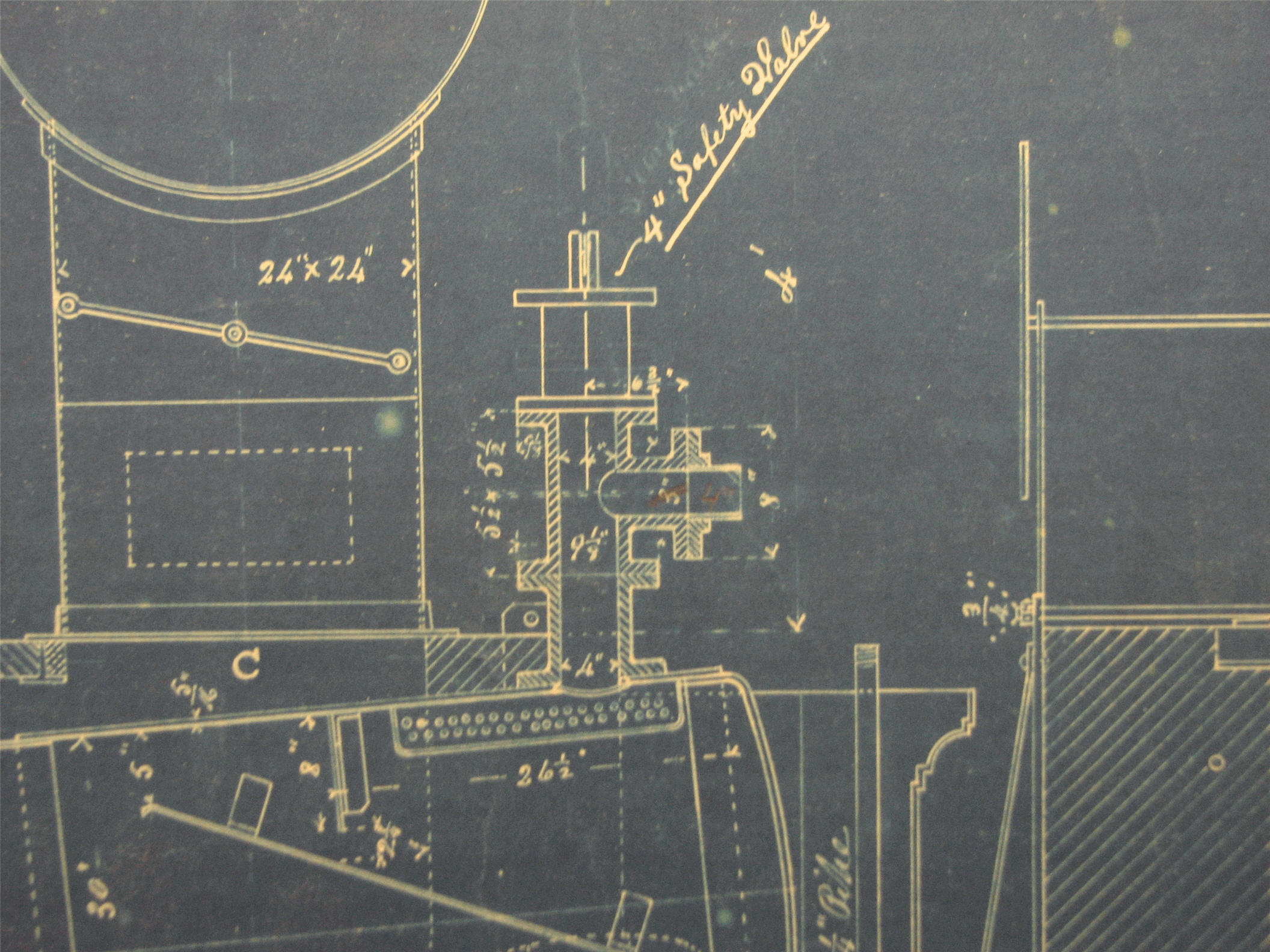

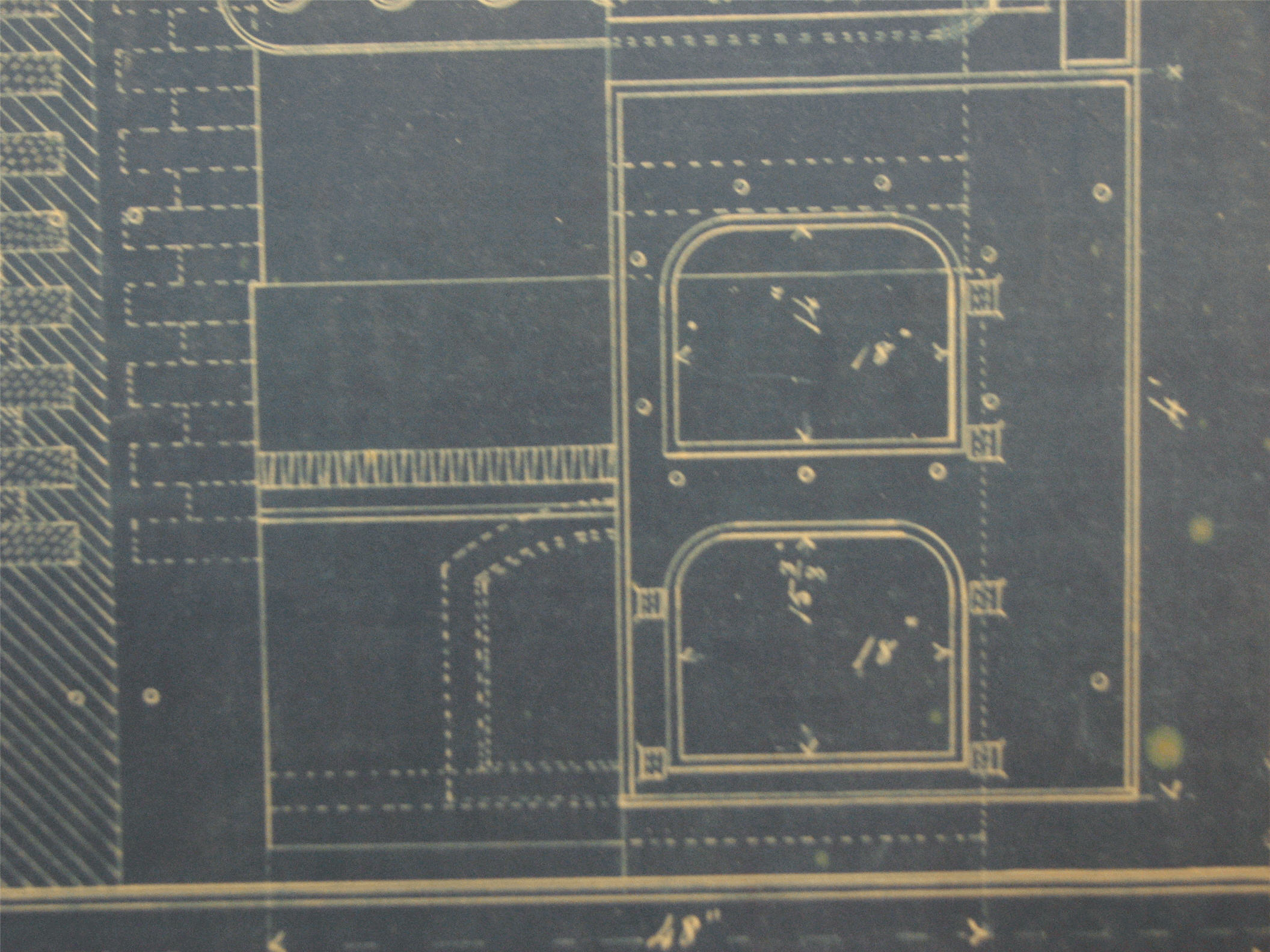

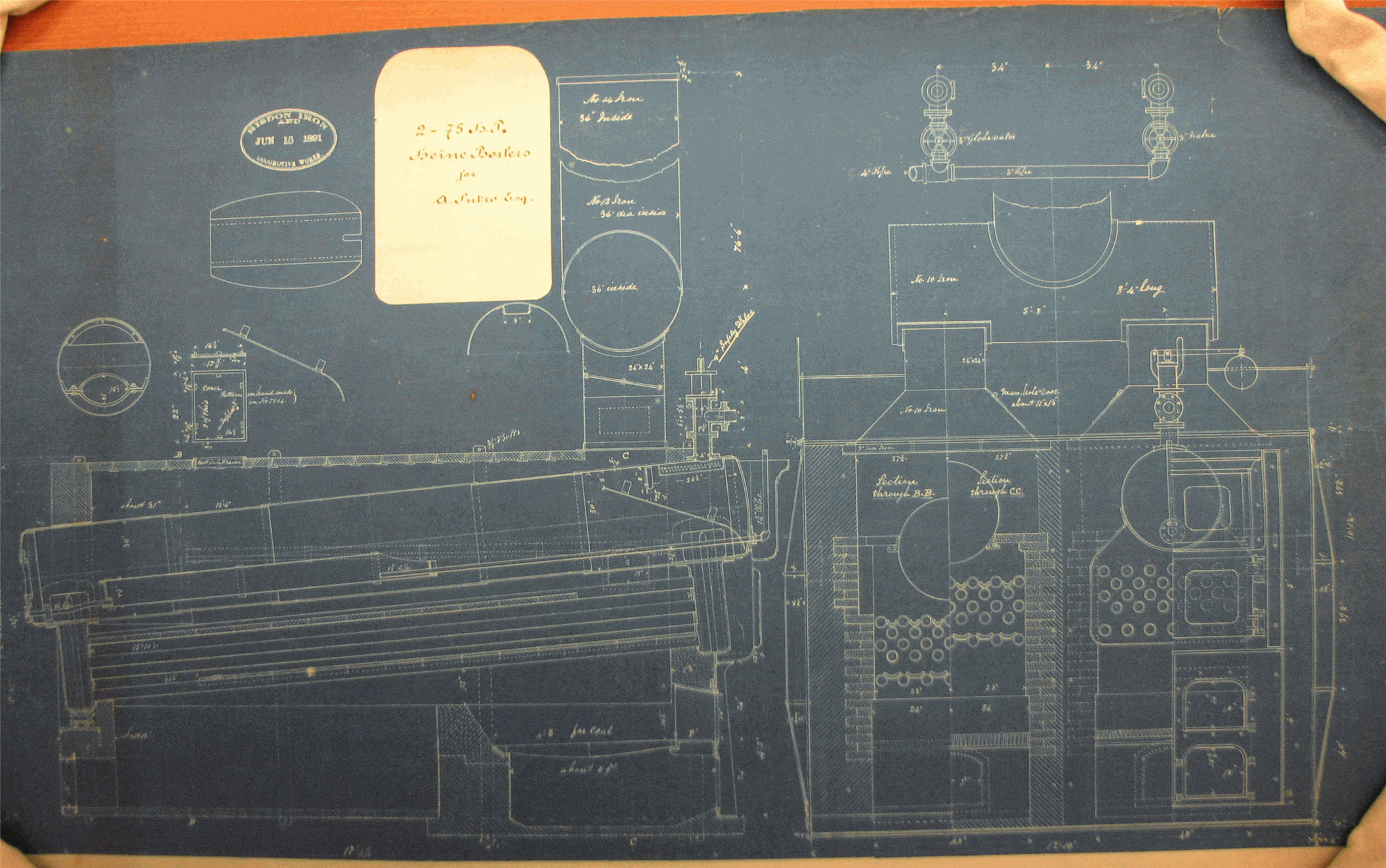

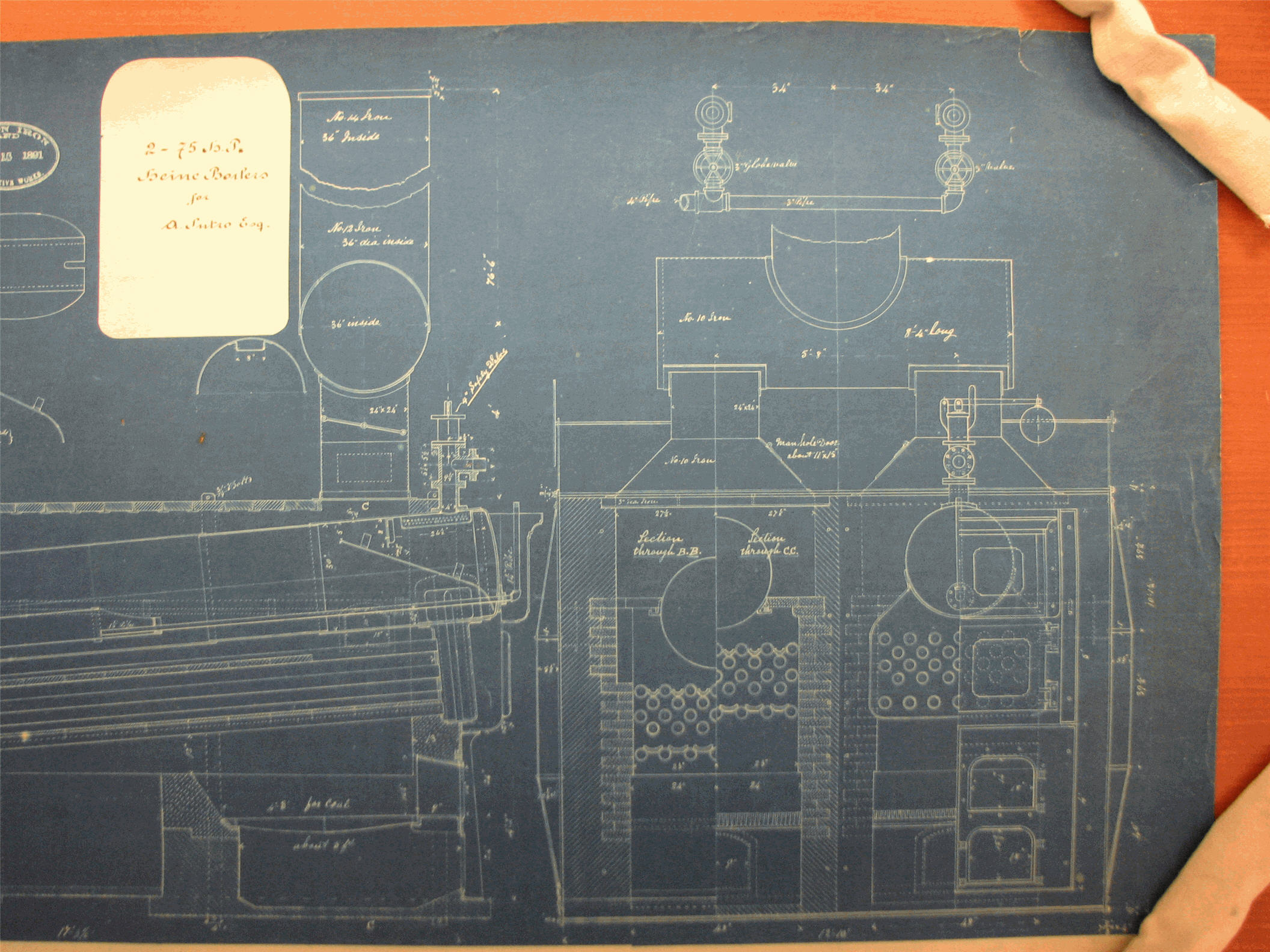

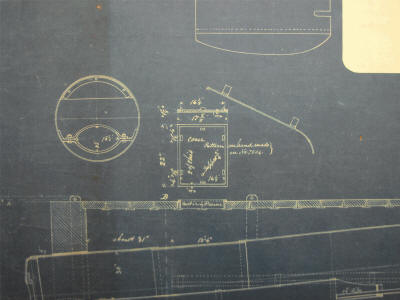

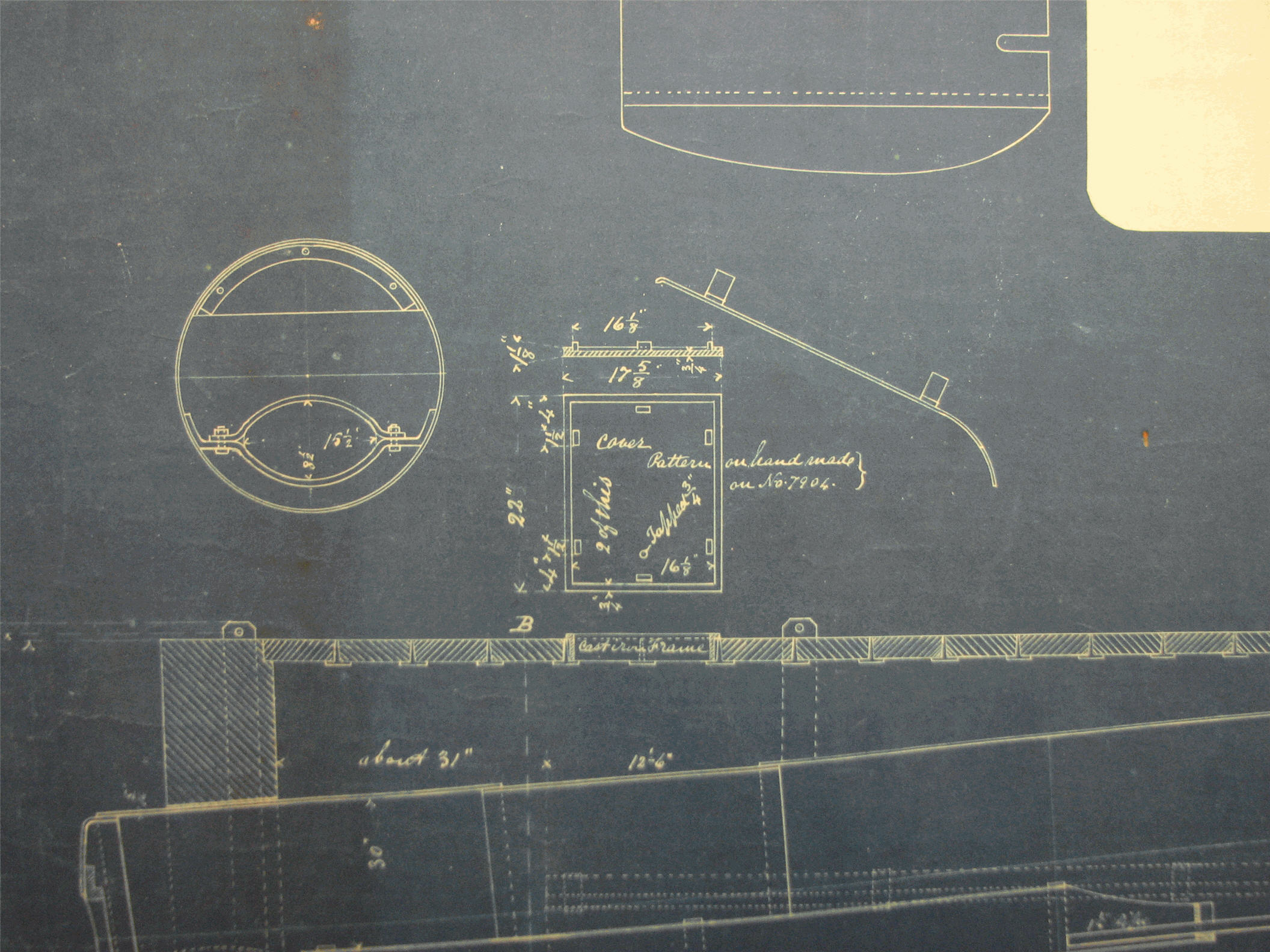

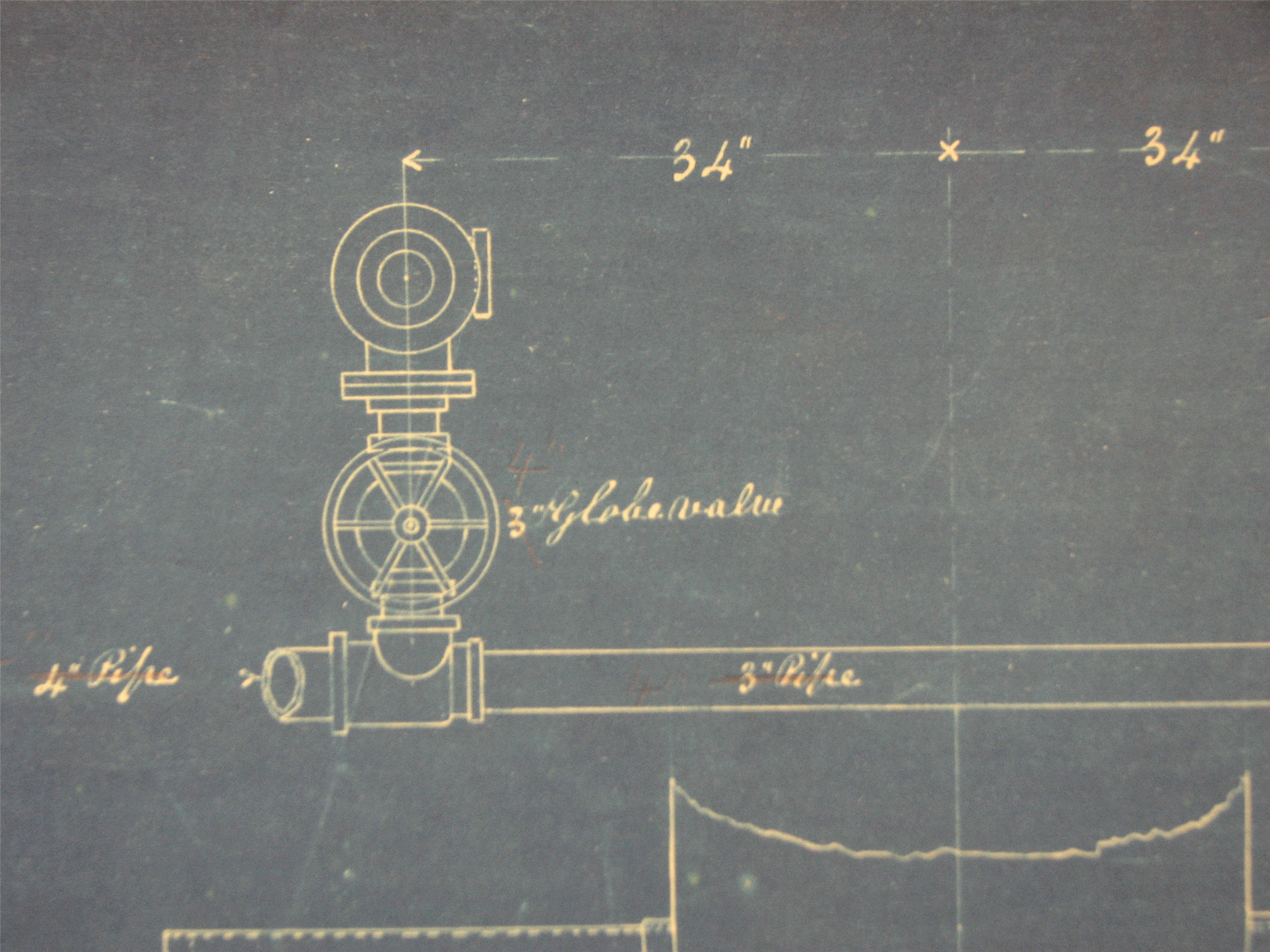

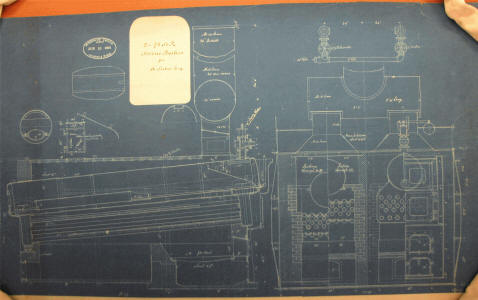

| Cross section of Laundry room and Coal chute for boilers |
|
|
|
|
|

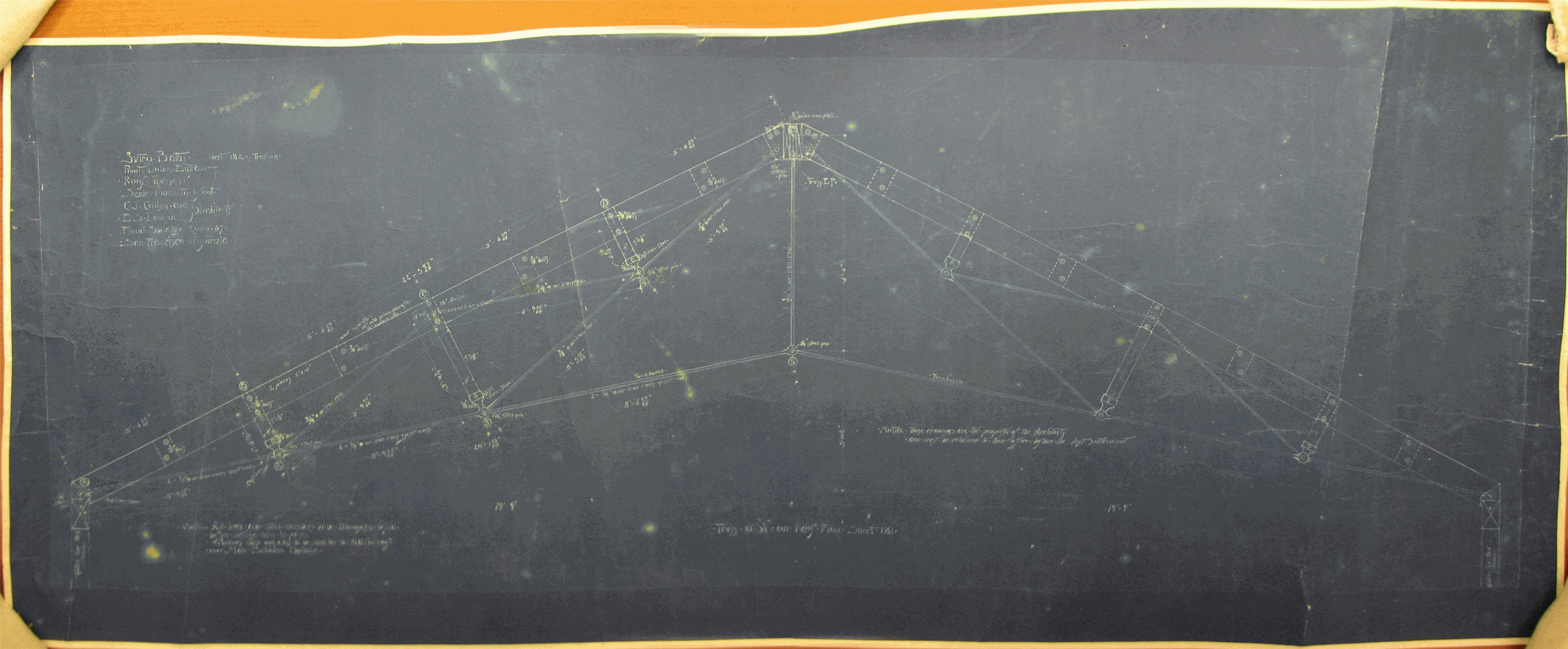

| roof truss |
|

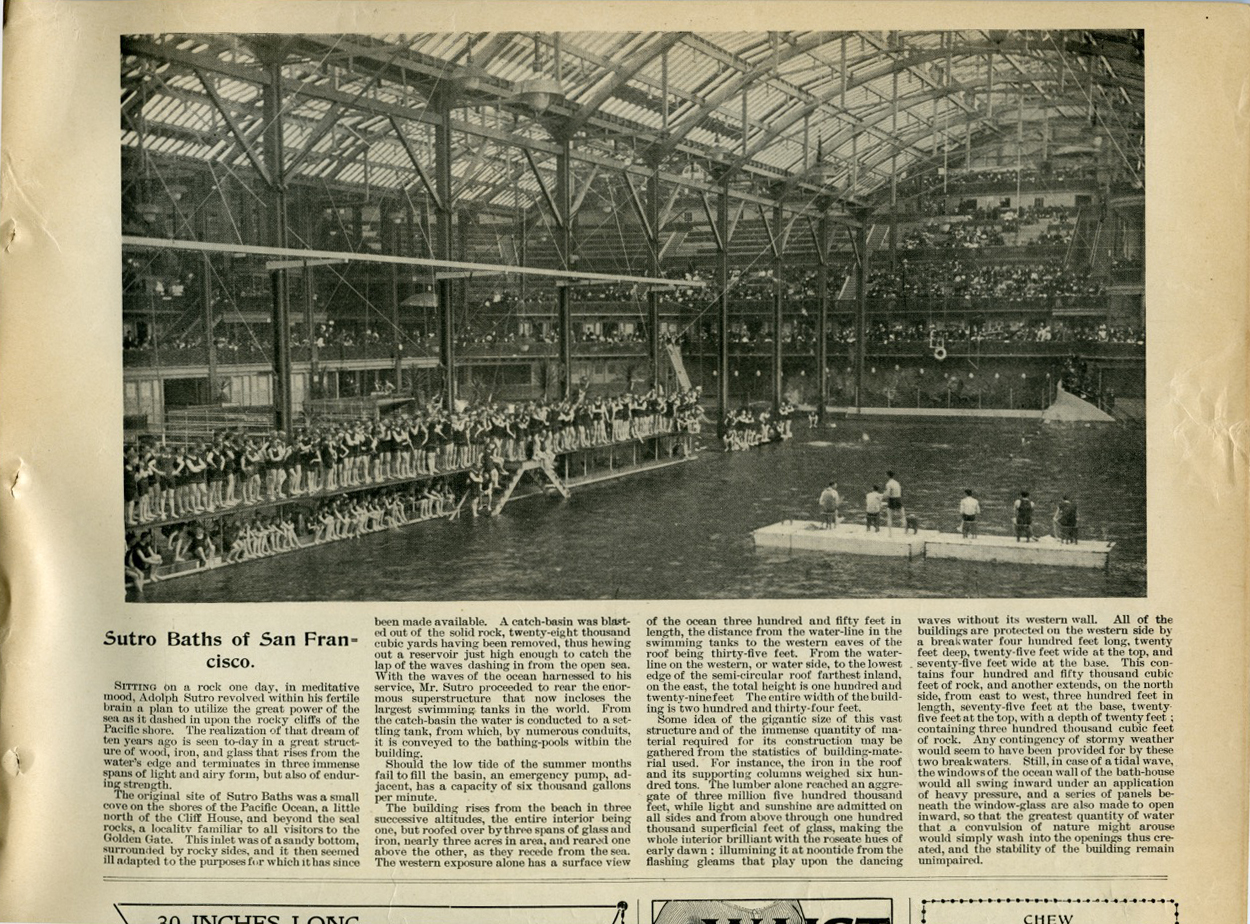

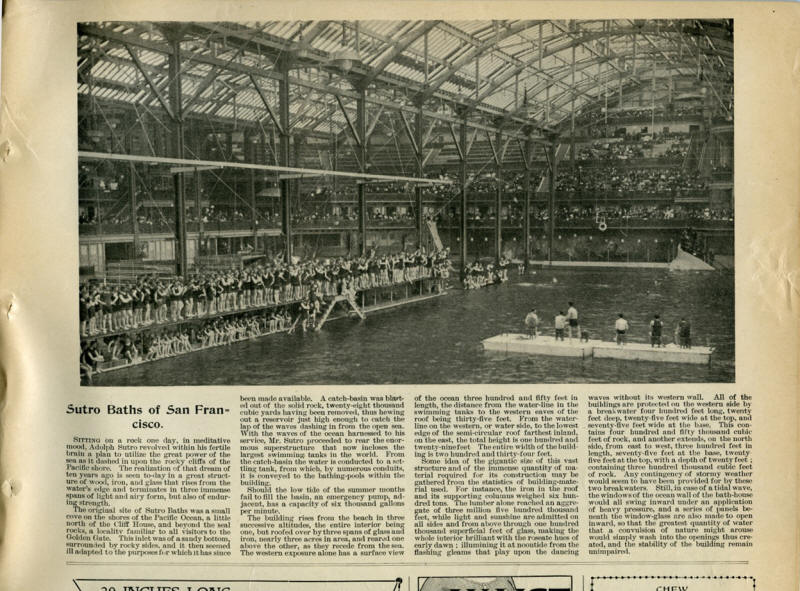

Article with detailed information on the baths
